Repalce Hfv640PE001ah High Flow Filter with PP Media Using in Water Purifier Machine and Waste Water Treatment

Product Description

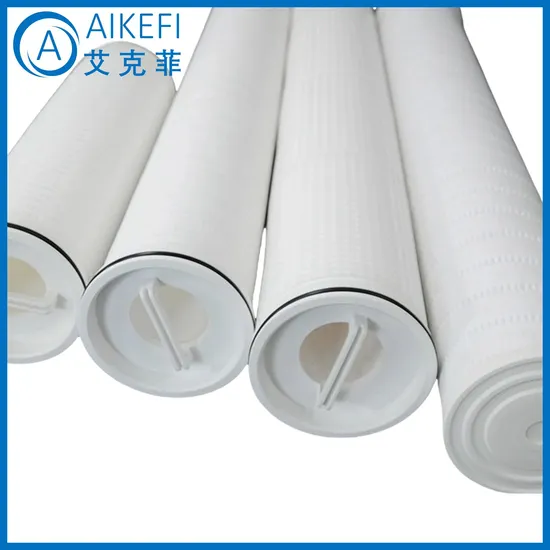

Product DescriptionHFV series cartridge, the cartridge for the coreless large diameter cartridge, cartridge filtration medium with polypropylene and polyester felt two media, fluid flow from the inside to the outside to ensure that the pollutants are intercepted in the cartridge, large diameter and large filtration area can reduce the size of the filtration system, while reducing the number of replacement of the cartridge, the handle is also convenient to quickly replace the cartridge. This series of cartridges are widely used in the petroleum industry, natural gas system and paper industry, etc. They can also be used for water treatment of epoxy resin, acid and alkali solutions.
Product Parameters

Diameter	6"/152mm
Length	20", 40",60"or up to customers'requirements
Filter media	Polypropylene (PP),PET(Polyethylene terephthalate)
End cap	Glass fiber reinforced PP
Gasket	EPDM,Buna N U,Buna N O,Nordel
Netting	PP
Removal Rating	1μm,2μm, 10μm,25μm ,50μm,100μm
Maximum operating temperature	82°C
Maximum differential pressure	5.0 Bar at 20°C
Maximum filtered water flow	1000LPM

Hfv series model

HFV640	HFV660
HFV640PE001AH	HFV660PE001AH
HFV640PE005PH13	HFV660PE005AH
HFV640PE010AH13	HFV660PE005PH
HFV640PP001AH	HFV660PE010AH
	HFV660PP025PH
	HFV660PP100PH13

Applications
Oil & Gas: Condensate feed, gas filtration, natural gas transportation pipelines, wastewater filtration, frac water treatment, produced water, general disposal well protection, diesel, gasoline, kerosene, LPG end product filtration, hydrotreater feed filters, amine circuit filters.
Chemicals: epoxy resins, disposal wells, feed streams, industrial resins and coatings, pesticides, acids, bases, solvents, silicone solutions, water treatment, end products, tank truck loading and unloading.
Pulp and Paper: white liquor, black liquor, deionized water, showers, bleach tower treated water treatment.
Paint in Automotive: Paint raw materials, intermediates, end products.
Features:
--Portable replacement cartridge
--High flow rate filtration
-Long service life
-High dirt-holding capacity
FAQ1. Q: When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us from your email,so that we will regard your inquiry priority.
2. Q: Do you Accept OEM service?
A: Yes! we can manufacture according to your requirement.
3. Q: What kinds of filter do you produce?
A: High flow filter cartridge ,wire water filter, pleated filter cartridge,security filter equipment ,RO Membrane Element and RO Equipment, and so on. You can turn to us for any kinds of filters and filter related parts.
4. Q: How do you pack products?
A: Standard exporting carton,wooden, pallet, customized.
5. Q: how long it your lead time?
A: Air shipment orders can be ready in 5 working days, sea shipment orders can be ready in 10 working days.
6. Q: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
7:Q: How should I place an order?
A:Please kindly click" send inquiry" or "contact supplier", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.
