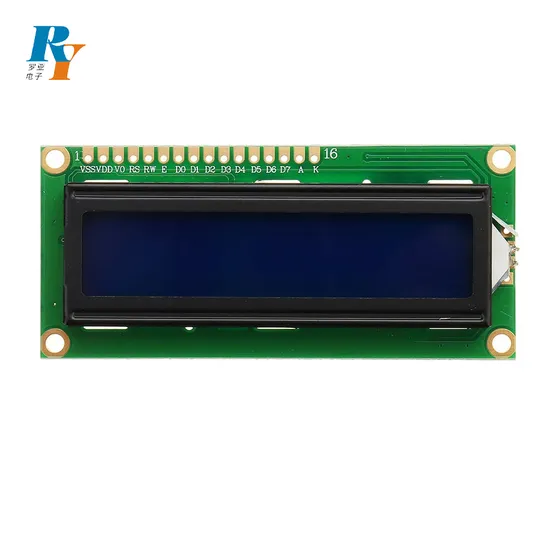

Standard Stn Blue 1602 Character LCD Display Monochrome LCD Module

Product Description

2.5inch LCD Display Module 16x2 Characters Lcd Display
Specification about 1602 LCD Module

Type:	LCD Module
Resolution:	16*2
Dimensions(W * H * D):	80.0×36.0×12.0mm
Active Area (W * H ):	64.5×13.8mm
Pixel pitch:	16*2
Display Mode:	Stn yellow green/blue/gray,fstn
Color of BL:	White/yellow green
Interface:	Parallel
Driver IC:	ST7066U
Power supply:	5V
Operation temperature:	-20~+70ºC
Storage temperature:	-30~+80ºC
Viewing Direction:	6H

16x2 Character LCD Display | RYP1602A-8
AKA: 1602 Alphanumeric Display Module
Module size: 80(L) * 36(W)
Driver: AIP31066
STN Yellow-Green background with Yellow-Green LED backlight, bottom (or 6:00) viewing angle, Wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit), Transflective (+) polarizer, 5V LCD, 5V LED, RoHS Compliant
STN (Super-twisted Nematic) provides a sharper image and wider viewing angle than TN (Twisted Nematic). The cost for STN if approximately 5% higher than TN. STN is an ideal fluid for outdoor products that need to be read at various angles.
The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.
Contour drawing about Character LCD Module
ROYAL DISPLAY STRONG POINTS

Complete production line	Complete manufacturing process from ITO glass to the back-end, all are in-house
Fast response	Quickly realize your customized ideas, and have a sample ready in short time
Low MOQ	Depends on product
Stable supply	1~10 years supply period
Rich experience	Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Extensive range	Providing complete solution from Mono to Color, LCD module to Half-embedded, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacity	Operation capacity 2KK monthly
Quality guarantee	RoHS & REACH compliant
Management	ISO 9001:2008, ISO 14001:2004

FAQ about Monochrome LCD display

Q1: Order process
A1:PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo

Q2: Lead time ( after payment is confirmed)
A2: Sample: 1-10 working days Volume: 3-60 working days

Q3: Payment
A3: T/T , Western union, L/C, Credit card, and Cash

Q4: Warranty
A4: 12 months warranty ( Please find more details via our datasheet by item of Limited Warranty)

Q5: RMA Process
A5:Claimed by cliens with photos or videos → Sales rep of Royal Display confirm if have questions → Sales rep issue RMA No to clients if confirmed by QA → Return to Royal Display → Formal report after goods received by Royal Display → Clients confim the analysis report → Proceeding as per the Report both agreed

Q6: Notes
A6:Please check both appearance and function of products prior to installation.
Any damage caused by improper use or unprofessional installation is not covered under warranty.
