X6325 Manufacturer Taiwan Head Vertical Horizontal Turret Milling Machine

Product Description

X6325 China Manufacturer Taiwan Head Vertical Horizontal Turret Milling Machine

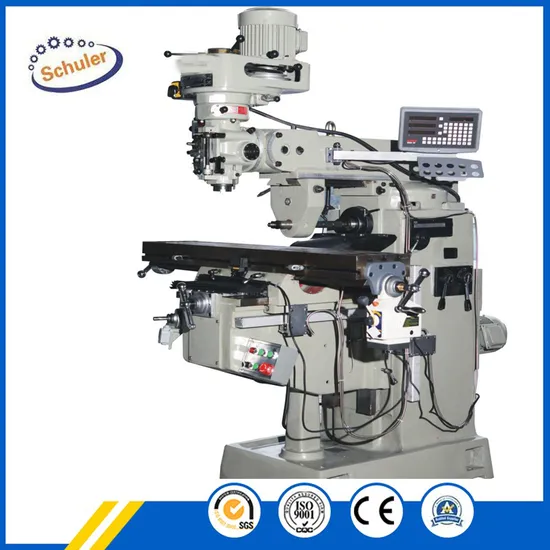

Product picture:
Turret Milling Machine Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Turret Milling Machine Standard Accessories:
1.Milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4
3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27
6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.Work lamp
9. Cooling systerm
10.Universal milling head XC63T4A
Optional Accessories:
1.X-direction feeder
2.Y-direction feeder
3.Z-axis electric lift:
4.Digital display. for two groups and for three groups.
5.Aluminum alloy operation panel
6.Milling head protection
7.NT30 pindle NT40 spindle
Turret Milling Machine Technical Parameters:

Specification	Unit	X6325
Table size	mm	254×1270(10"×50")
Table loading	kg	280
Table travel(X/YZ)	mm	850×400×400
Vertical travel	mm	420mm
T-slot No. and size	mm	3/16/65
Ram travel	mm	400
Distance between horizontal nose and table surface	mm	0-400
Spindle hole taper		R8 /NT30(Vertical )
		NT40(Horizontal)
Spindle travel	mm	127
Spindle speed(50Hz)	r/min	80-4200(variable)
		66-4540(16-speeds shift)
		40-1300(12-speeds shift)
Auto. quill feed	mm/r	0.04 ( 0.0015" ) / 0.08 ( 0.003" ) / 0.15 ( 0.006" )
Spindle motor	HP	3HP(vertical)
		4kw(Horizontal)
G.W/set	kg	1380

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Turret Milling Machine Details:
Turret Milling Machine Package Delivery:
