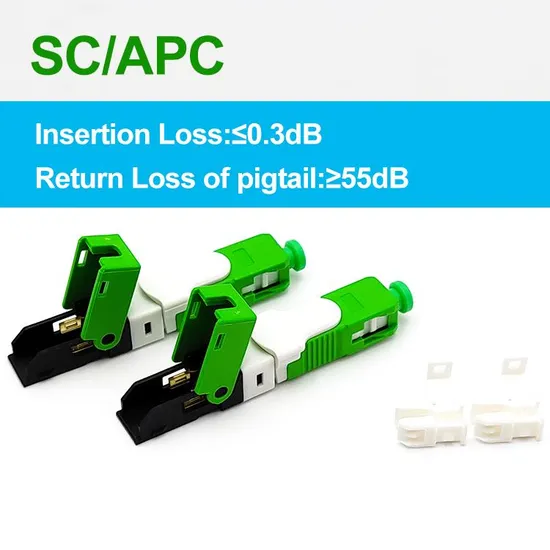

Sc/APC Mechanical Fiber Optic Quick Fast Connector for FTTH Drop Cable
Basic Info.
Model NO.
Fast connector
Number of Cores
Single-Core
Ferrule Endface
APC
Shape
Square
Fabrication Process
Cold Pressing
Application
Fiber Distribution Frame, Network Equipment
Light Source TYPE
Laser
Connector Type
SC-APC
Brand
OEM
Product Name
Sc/APC Mechanical Fiber Optic Quick Fast Connector
Type 2
Sc/Upc
Package
1PC/PP Bag or 10PCS/Blister
Transport Package
Cartons
Specification
100pcs/Poly bag & 2000pcs/ Carton
Trademark
NH-LINK
Origin
Shenzhen, China
HS Code
8536700000
Production Capacity
50000PCS/Day
Product Description
| Connected Cable | |||||
| FTTH Drop Cable 3×2.0mm ; Indoor 3.0mm cable | |||||
| Expand to 1.2,1.6,0.9 mm diameter cable and 250um fiber | |||||
| Technical Parameter | ||||||
| Optical Fast Connector Optical Performance | Unit( dB) | |||||
| (Reference to China Standard Q/CT 2299-2010-6.1) | ||||||
| Code | Test Item | Mechanical Q/CT 2299-2010-Chapter6.1 | Fusion Splicer Type | |||
| YD/T 2341.2-2011-Chapter 4.7 | ||||||
| Average Value | Maximum Value | Average Value | Maximum Value | |||
| a | Insertion Loss | ≤0.3 | Tested with standard plugs and adapters:≤0.5 | ≤0.25 | Tested with standard plugs and adapters:≤0.4 | |
| Test with any plug and adapter:≤0.7 | Test with any plug and adapter:≤0.7 | |||||
| b | Return Loss | ≥40(UPC);≥55(APC) | ≥50(UPC);≥60(APC) | |||
| Mark1: IL and RL Test at 1310nm. If need test 1550nm, Please tell us first. | ||||||
| Mark2:IL and RL average and Maximum vale make as customer's requirement. | ||||||
| Mark3:Return Loss can customized UPC standard -45~-50dB;APC Standard -55~-60dB | ||||||
| Application | ||||||
| Applied to open FTTH fiber terminal | ||||||
| Used in closure boxes, cabinets, teminal boxes, etc. | ||||||
| Recovery and maintenance in fiber breakage and other accidents | ||||||
| LAN, WAN, data and video transmission | ||||||
| Construction and maintenance of fiber access for end users | ||||||
| Fiber entry for mobile base stations | ||||||
