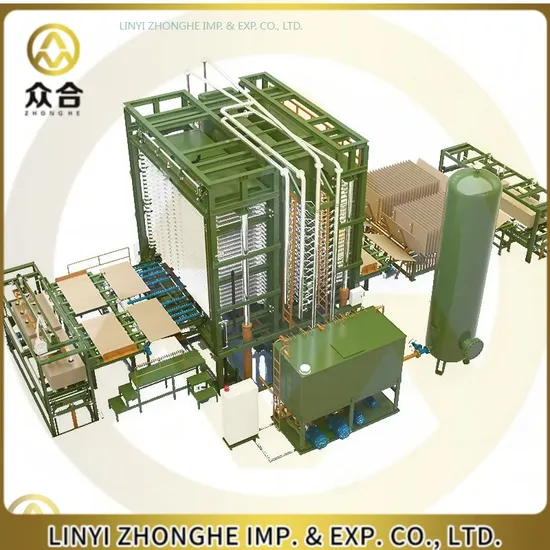

25 Layers Full Automatic High Efficiency Plywood Hot Press Machine
Basic Info.
Type
Hot Press Machine
Automatic
Automatic
Certification
CE, ISO
Color
Customize
Function
Put Pressure on The Plywood
Core Components
Motor, PLC
Power
800 Ton
Main Cylinder
320*2100mm* 4 PCS
Lifting Cylinder
160*2100mm* 2 PCS
Transport Package
Plastic Film / Plywood
Specification
4220*2020*11300 mm
Trademark
ZHONGHE
Origin
Linyi City, China
HS Code
847930000
Production Capacity
3 Sets / Month
Packaging & Delivery
Package Size
360.00cm * 137.00cm * 420.00cm
Package Gross Weight
42000.000kg
Product Description
film faced plywood hot press machineDetailed Photos
Product Parameters
| 500Ton Hot Press Machine | |
| Pressure | 500tons |
| Layers | 15Layers |
| Hot platen distance | 70mm |
| Hot plate qty | 16pcs |
| Heating platen size | 2700*1370*42mm |
| Qty of Cylinder | 2 |
| Diameter of cylinder | 360mm |
| Stoke of cylinder | 1050mm |
| Upper ,bottom crossbeam | 900mm |
| Thickness of main frame steel | 35mm Q235 |
| Overall dimension | 3550*1370*4650mm |
| Weight | About 38Tons |
| 600Ton Hot Press Machine | |
| Pressure | 600tons |
| Layers | 10Layers |
| Hot platen distance | 100mm |
| Hot plate qty | 11pcs |
| Heating platen size | 2700*1370*52mm(two inlet two outlet) |
| Diameter of cylinder | 6*ø220mm,2*ø120mm,(lifting cylinder),totoal 8cylinder,Wuxi cylinder |
| Stoke of cylinder | 1000mm |
| Upper ,bottom crossbeam | 900mm |
| Thickness of main frame steel | 35mm Q235 |
| Overall dimension | 3600mm*1370mm*4200mm |
| Weight | About 42Tons |
| 800Ton Hot Press Machine | |
| Pressure | 800tons |
| Layers | 25Layers |
| Hot platen distance | 80mm |
| Hot plate qty | 26pcs |
| Heating platen size | 2700*1370*42mm |
| Qty of Cylinder | 4 |
| Diameter of cylinder | 320mm |
| Stoke of cylinder | 2000mm |
| Upper ,bottom crossbeam | 900mm |
| Thickness of main frame steel | 40mm Q235/(4 groups frame) |
| Overall dimension | 3600mm*1370mm*6720mm |
| Weight | About 86Tons |
Factory Display
Packaging & Shipping
ABOUT US
FAQ
1. Q: How many years had your company been established ? A:We specilized in wood based panel machinery for 10 years. 2. Q:QUALITY CONTROL? A: Each machine will be tested three times before delivery. 3. Q:DELIVERY TIME? A: 30-90 days upon receiving deposit. 4. Q:Factory Layout Design? A:We have engineer team to make layout drawing for customers for free. 5. Q:PAYMENT TERMS? A: T/T, L/C D/P are accepted. 6. Q:MOQ?
A: 1
