Lab scale wool fiber gilling frame With 8 colors for selection

Product Description

Product Description

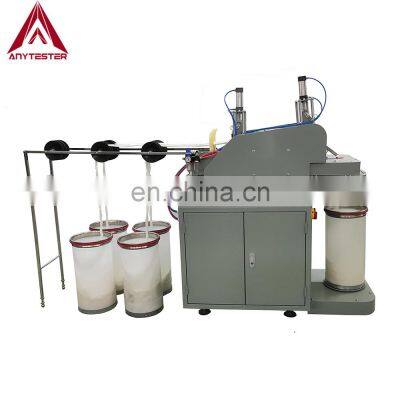

Product DescriptionAT204M Laboratory Gilling Machine is one of the most important equipment of long fiber processing system (such as worsted spinning system). In the long fiber spinning system, as the roller carding machine output sliver fiber straight parallelness and evenness does not meet the requirements of spinning, and some fiber still exist "Hook", can’t be directly spinning. Especially in the worsted spinning system, if directly use such sliver on combing machine, easy to cause fiber damage, comb needle damage and the production rate reduce. In order to improve the combing process, the gilling machine is frequently used in the former spinning process. Generally, 2 to 3 gilling box are used before the combing, so that the fiber can be parallel to the straight. After combing, 2-4 gilling box are used, it’s for improve the uniformity of the sliver. The main task of the needle comb process (gilling machine) is to improve the uniformity of the middle and long fiber in the sliver by the combination of multiple roots and drafts. Moreover, it is used to furtherly improve the parallelness and the degree of separation of the fibers by needle comb and to eliminate the hooks and curl in the same time. It repeated merging and drawing, so that fiber mixing evenly, and stabilize the yarn quality; to remove some small impurities and short hair.Features1. Large touch screen display and PLC control;2. High-efficiency invertors and motors independently control feeding roll, needle plate box, output roll and coiling device.1.Doubling up to 8 slivers1.Pneumatic feeding roll and output roll.2.Mini-type machine, save researching cost and easy to operate and maintain.1.One needle gilling box.2.Special coiling device, hard to be blocked.3.High-efficiency invertors and motors independently control feeding roll, needle plate box, output roll and coiling device.SpecificationModelAT204MAT204MFiber typeWoolWoolControl modeTouch screen & PLCTouch screen & PLCNumber of needle gilling box11Draw ratio of gilling box2-52-5Draw ratio of color sliver1-81-8Fiber length80-120mm80-120mmMotor power for feeding roll90W90WMotor power for needle plate750W750WMotor power for output roll90W90WMotor power for coiling device90W90WOutput speed6~30m/min6~30m/minCan sizeΦ250×550mmΦ250×550mmPowerAC220V 50Hz, single-phase, 1500WAC220V 50Hz, single-phase, 1500WDimension1300mm×800mm×1750mm (L×W×H)1300mm×800mm×1750mm (L×W×H)Weight500Kg500KgPacking & DeliveryPackagingSize(cm)73 (L) * 72 (W) * 168.5 (D)Weight260 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
