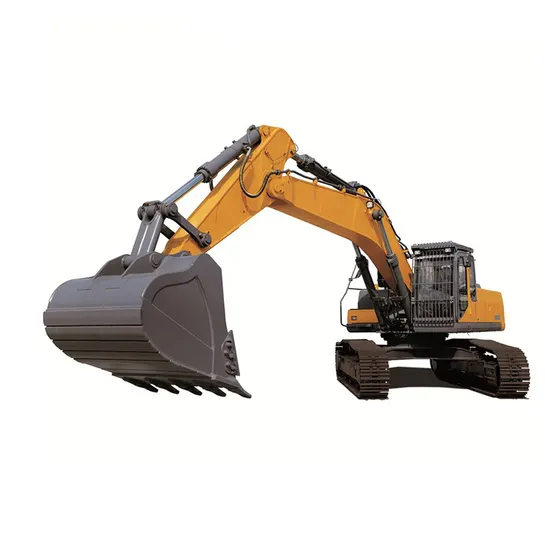

China Top Brand Earthmoving Machine Hydraulic Operation Xe60ga Crawler Excavator 6 Ton Xe60ga Mini Digger Excavator for Sale
Basic Info.
Model NO.
XE60GA
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Rated Engine Power
35.9/2000 Kw/Rpm
Bucket Digging Force
48.3 kN
Operating Weight
6050 Kg
Overall Length
5,850 mm
Overall Width
1,885 mm
Overall Height
2,584 mm
Transport Package
Nude
Specification
small
Trademark
TEWREX
Origin
China
Production Capacity
100units/Month
Packaging & Delivery
Package Size
600.00cm * 200.00cm * 300.00cm
Package Gross Weight
6000.000kg
Product Description
Product Parameters| Model | XE60GA | ||
| Operating Weight | kg | 5960 | |
| Standard bucket capacity | m³ | 0.09-0.23 | |
| Engine | Engine Model | 4TNV94L | |
| No. of cylinders | 4 | ||
| Rated power/speed | kw/rpm | 39.8/2200 | |
| Max.torque/speed | N.m | 214/1100 | |
| Displacement | L | 3.054 | |
| Main Performance | Travel speed | km/h | 4.2/2.2 |
| Swing speed | r/min | 9.5 | |
| Max.gradeability | % | 35 | |
| Ground pressure | KPa | 32.1 | |
| Max.bucket digging force | kN | 42.5 | |
| Max.arm crowd force | kN | 28.5 | |
| Max.traction force | kN | 50.5 | |
| Fuel Capacity | Fuel tank capacity | L | 110 |
| Hydraulic tank capacity | L | 85 | |
| Engine lubrication | L | 12 | |
| Overall Dimension | Overall length | mm | 5850 |
| Overall Width | mm | 1880/1920 | |
| Overall height | mm | 2584 | |
| Overall width of upperstructure | mm | 1780 | |
| Track length | mm | 2548 | |
| Overall width of undercarriage | mm | 1880 | |
| Crawler width | mm | 400 | |
| Ground clearance | mm | 369 | |
| Working Range | Max. digging height | mm | 5630 |
| Max.dumping height | mm | 3945 | |
| Max.digging depth | mm | 3830 | |
| Max.vertical wall digging depth | mm | 2680 | |
| Max.digging reach | mm | 6130 | |
| Min. swing radius | mm | 2450 | |
| Max.dozer lifting height | mm | 402/390 | |
| Max.dozer cutting depth | mm | 456/560 | |
Product Description
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.
XE60GA adopts a good engine excellent in environmental protection and energy saving. Moreover, it uses a load sensitive hydraulic system, able to guarantee operator's better controlling of the machine and better movement coordination, reduce the demand for operation proficiency of the driver; in addition, the reliability of this system has been recognized by the majority of users. 1.Environmental protection type high efficiency and low consumption of the famous excavator engine.
2.Load sensing hydraulic system control performance is good, energy saving.
3.The main valve is arranged at the outer side of the cab, convenient maintenance and repair easy.
4.A powerful digging force and traction force mini excavator.
5. selection of GPS satellite positioning and remote monitoring system.
We can also offer mini, middle and large size.
Middle Model
XE135B, XE265C, XE215C, XE235C, XE215CLL, XE260CLL , XE150D, XE225CA,XE335C, XE370CA
Big Model
XE470C, XE490CK, XE700C, XE900C, XE470M,XE1300C
Mini Model
XE15, XE60C, XE50C,XE65CA ,XE85C,XE60CA
