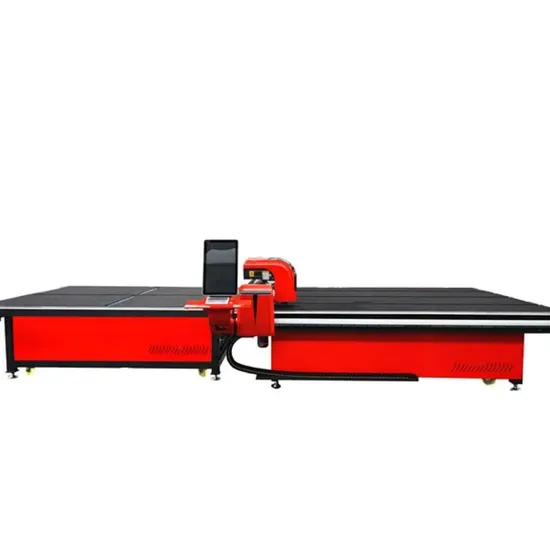

CNC Cutting Machine for Sintered Stone Precision and Accuracy Stone Processing Machine CNC Sintered Stone Cutting Machine 2716

Product Description

Product Description

Detailed Photos
The uniform output pressure of the cylinder allows the cutting head to perfectly fit the glass surface for cutting, thus avoiding the phenomenon of knife skipping due to glass quality problems.
The cutting table is equipped with air holes, and a centrifugal fan provides high-pressure airflow to facilitate the transportation of glass and protect the table.
After glass cutting, the glass is transported to the air flotation breaking table through three synchronous belts and the air flotation system for breaking operations.
Special industrial control host for the control system, small in size and stable in performance.
Product Parameters

Machine parameters	Dimensions(L*W*H)	5600*2000*1630mm
	Weight	1200kg
	Table height	880±30mm(Adjustable feet)
	Power requirements	380V,50Hz
	Installed power	7.5kW(Use power3KW)
	Compressed air	0.6Mpa
Processing parameters	Cut Sintered Stone size	MAX.2700*1600mm
	Cut Sintered Stone thickness	3~15mm
	Head beam speed	X axis 0 ~ 200m / min (can be set)
	Head speed	Y axis 0 ~ 200m / min (can be set)
	Cutting acceleration	≥8m/s²
	Cutting knife seat	Cutting head can rotate 360 degrees (precise cutting of straight lines and special shapes)
	Cutting accuracy	≤±0.25mm/m(Based on the size of the cutting line before the glass breaking)

Packaging & Shipping
Company Profile
Shandong Huashil Automation Technology Co., LTD., is a set of mechanical equipment automation research
and development, manufacturing, sales in one of the high-tech manufacturing enterprises,mainly research
and development production of a full set of glass deep processing intelligent equipment,such as the glass
loading and cutting machine,glass cutting line,glass shuttle warehouse intelligent chip trimming
system,glass edging machine,glass double-sided edging machine and so on.
We have wealth mechanical automation equipment production experience, production capacity, technological level and comprehensive economic strength in the same industry in the forefront of the domestic industry, intelligent automation
equipment research and development, material control, equipment performance and modeling has been in the domestic
leading level, a number of techniques. have filled the domestic blank. The good after - sales service and reasonable price,
for a long time to win the customer's praise. In line with the principle of "good faith first, customer satisfaction",
our company has established long-term cooperative relations with many enterprises.Huashil colleagues will be positive,open mind to meet new opportunities and challenges, we always been to
use science and technology into productivity for the mission, to help China's economic development.
FAQ
1.Who are we?Huashil is a design and fabrication oriented company for Flat Glass Deep processing technology. We are based on Shandong, China.2.When can we arrange shipment?We usually arrange shipment within 30 days after getting deposit, but customized machines should be between 60~100 days.3.How to provide after-sales service? Free warranty for one year. Provide remote services and video guidance.4.What operating language is the machine?Standard English, can also be changed as required 5.How to operate the machine ? We will deliver English manual and video with the machine to you. If you still need our help, please contact us for engineer dispatching.
