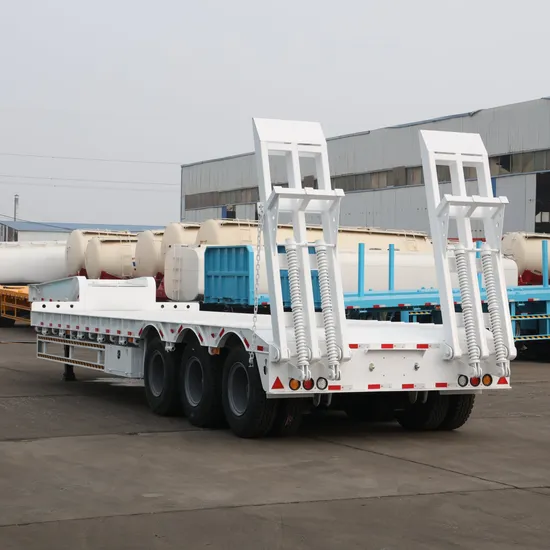

Chassis 60 Ton 3 Axles Lowboy Lowbed Low Bed Semi Trailers

Product Description

Chassis 60 Ton 3 Axles Lowboy Lowbed Low Bed Semi Trailers

Product Specification Chengda Trailer design & manufactures best useful lowboy trailers and mobile workshop truck bodies to meet customer requirements with high standards.Chengda specializes in the production of special lowboy trailers like extendable, hyraulic and self steered semi low loaders, special design flatbed trailers that meets all driver needs, mobile workshop truck bodies for basic maintenance, tyre repair, pipe-line maintenance etc.
We also can produce special products according to customers' requirements
The quality of our products is very good, welcome to our factory

Tare Weight	About 11T
Dimension	1000mm*3000mm7*1100mm (Size can be choose freely)
Loading Capacity (T)	60T
Axle	16T, FUWA
Rim	8.00-20 (Special for export market)
Tire	11.00R20
Suspension	Mechanical suspension (America Type) (Special for export market)
Spring leaf	10 Layer or 100mm*12mm*12 (Special for export market)
King pin	JOST brand 3.5inch bolts type
Support leg	JOST brand C200T
Main beam	Height: 520mm, upper plate is 20mm, middle plate is 12mm, down plate is 20mm ; Material is Q345B Steel .
Side beam	18mm channel steel ( Material is Q235steel ).
Bottom Platform	5mm thickness diamond steel plate
Ladder	Manual type
Gooseneck	For choose
Brake chamber	WABCO RE 6 relay valve; one piece of 45L air tanks
ABS	Optional
Valve	WABCO valve
Light	LED light (Special for export market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms:	By bulk cargo carrier

The pictures and configurations are just for your reference . We can produce many kinds of semi
trailers , like container transport semi-trailer, side wall cargo transport semi trailer and fence semi
trailer . If you have any need for semi truck, you can contact me directly, tell me your specific
requirements, the semi trailer can be customized according to your requirements.

Picture 1: it is landing gear, our landing gear is standard 28ton, there are many landing gear brands that can be chose.Picture 2:it is tool box, one lowbed semi trailer is equipped with a tool box as standard.Picture 3: it is axle and tires. And tire is 1100R20, there are many brands to choose. Axle is 13ton FUWA/BPW/ZY/YORK. Most famousbrand in China, All are heavy Duty durable.Picture 4: Trailer parts provided for free , so that customers can repair by themselves in case of any small problems.Picture 5: Suspension is steel spring suspension, it is easy to repair and cheap.Picture 6:it is hanger and 6mm thick, 270mm high.
Features
Lowbed semi-trailers are usually used to transport heavy vehicles (such as tractors, buses, special purpose vehicles, etc.), rail vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, paving machines, etc.), The lower the center of gravity, the better the stability and safety, and the greater the ability to transport the super-high cargo and to pass through the overhead barrier.
Main Parts
Company Information
Shandong Chengda Trailer Manufacturer Co.,Ltd. established in 2005 is one of the qualified manufacturers of various trailers. Integrated production, scientific research & development and professional sales teams, all those advantages can provide the full service of trailers, semi-trailers, tractor head, dump truck, engineering machinery and trailer parts, our company is a leading provider in this industry, with annual export value reaching above 50 million dollars and revenue almost 600 million yuan RMB.With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have built a long business relationship with many world famous enterprises such as SINOTRUK,SHACMAN,FAW,DFAC,XUGONG Group,LIUGONG Group,SEM Group etc. Besides mature after-sale systems, we can meet different needs of customers both home .
Certification
1.CCC is shorted for China Compulsory Certificates, which is similar to others certificates for product quality standardization, such as European CE system. In order to obtain the CCC certificates, the manufacturer is required to do the product testing and factory audits.
2. WMI is short for World Manufacturer Identifier. Every vehicle manufacturer all over the world has one unique or several WMI.
3.All the semi trailers manufactured in our factory is in conformity with quality management system standard:GB/T19001-2008 idt ISO 9001:2008.
Shipping
1.By bulk/Ro-Ro:If the trailers's size over the container size, we can ship it by RoRo or bulk ship,also inland transportation can be packed in nude, pulling by truck head to border.
2.By container:If the ordinary trailer within 11.8m,can be loaded by 40ft HC;tankers within 40000 liters or 40CBM also application for this transportation method.
Related products
Our advantages 1. The frame of the Trailer adopts the space frame structure of welding the longitudinal beam and the integral through type cross beam. It is outstanding in strength, rigidity, toughness and bearing capacity. Meanwhile, the frame won't come out with permanent deformation.

2. The height of side wall can adopts 800mm and the height of trailer is 300mm, the side wall without removing when carry the 40ft 20ft containers.

3. trailer adopts excellent brake effects.the axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.

4. chengda Trailer adopts premium steel material, advanced technology and strict production to our semi-trailer. The trailer chassis automatic submerged arc welding to ensure the welding seal solid.
Our services
Service:Customers can enjoy great purchase process from our professional sales team. With professional and mature after-sales systems, our service to you does't end after you receive the cargo from our company, it is just a new beginning of our cooperation.
Main Markets:Our company has enjoyed great preference by customers from African, South America, middle east, North Asia, South Asia and South east Asia. So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Uganda, Fiji, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru, Uruguay, Argentina etc.
Our company's future vision: become a globally-famous and long-standing corporation.
Our company's Mission: Share interests and happiness with all partners.
Warranty

		Warranty	Item Name			Warranty
Main Frame	Frame	12 Months	Running Gear	Axles		6 Months
	King Pin	12 Months		Tires		6 Months
	Suspension	6 Months		Axle Bear		3 Months
	Balance Arm	3 Months		Wheel Hub		3 Months
Item Name		Warranty	Item Name			Warranty
Braking Device	Air Reservoir	6 Months	Support Device		Landing Gear	6 Months
	Braking Chamber	3 Months			Spare Wheel Carrier	6 Months
	Braking Drum	3 Months
Item Name			Warranty
Other Item	Leaf Spring		3 Months
