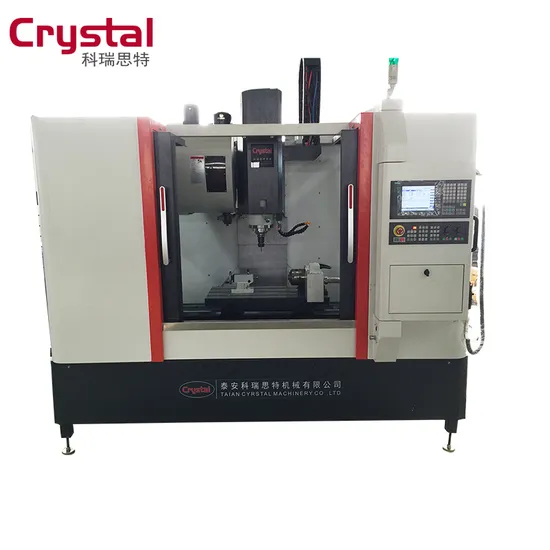

China Machining Center Vertical 3 Axis CNC Milling Machine Vmc850
| US$30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VMC850
Structure
Dedicated
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Material
Cast Iron
Place of Origin
China
Processing Type
Metal
Power Supply
Three Phase 380V/50Hz
Warranty
1 Year
Transport Package
Standard Wooden Package
Specification
CE
Trademark
Crystal
Origin
Shandong
HS Code
8458110090
Production Capacity
25 Sets/Month
Product Description
CNC Milling Machine 4-axis Heavy Duty Machine Center VMC850This VMC is suitable for the mechanical processing and mold making.And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc
| Specifications | VMC850 |
| workbench specification | 1050*500mm |
| workbench maximum load | 600kg |
| X/Y/Z axis coordinate schedule | 800×500×550 |
| Distance between spindle center and column guide surface | 550mm |
| Distance between spindle end face and worktable surface | 105-655mm |
| X/Y/Z largest feed speed | 10000 mm/min |
| X/Y/Z largest fast moving speed | 20/20/15 m/min |
| The spindle maximum speed | 8000rpm |
| The spindle taper hole | BT40 |
| Spindle motor | 7.5/11 Kw |
| X/Y/Z axis servo motor | 2.0/2.0/2.0 |
| X/Y/Z motor connection | Direct acting |
| X/Y/Z guide rail form | X/Y/Z sliding rail |
| The workbench T slot | 5-18×90 mm |
| Positioning accuracy | ±0.005/300mm |
| Repeat positoning accuracy | ±0.004mm |
| Tool storage form | Turntable Style Tool Magazine/ disc type tool magazine |
| Capacity of tool storage | 16 turntable Style Tool Magazine/24 disc type tool magazine |
| Maximum tool weight | 8kg |
| The biggest tool length | 250/350mm |
| Electric capacity | 11 KVA |
| Machine size (L×W×H) | 2760*2250*2700mm |
| weight | 6000kg |
