Used Xg Hb58V 58m Pump Truck - High-Level Pumping Premium Choice
| US$110,000.00-220,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HB58V
Machining Process
Piston Pumping
Structure
Cylinder Type
Productivity
180m³/H
Feeding Height
58000mm
Certification
ISO9001: 2000
Condition
Used
Color
White and Yellow
Type of Outriggers
X Outriggers
Placing BoomTslewing Angle
±270°
Theoretical Output
180m³/H
Overall Weight
44000kg
Transport Package
Container
Trademark
XG
Origin
China
HS Code
8705909990
Production Capacity
180m³ /H
Product Description
Product DescriptionBasic parameters

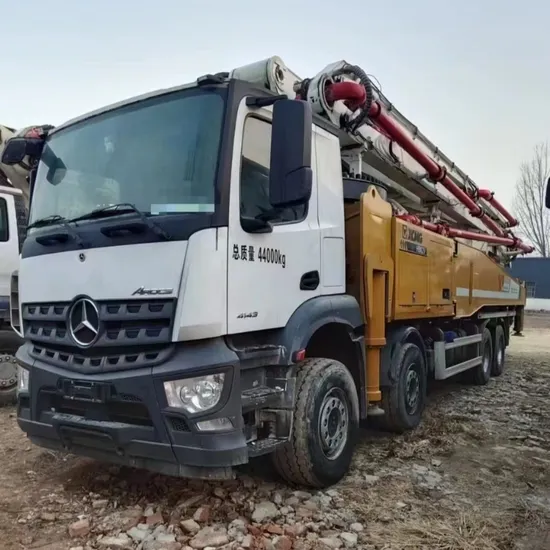

The XG HB58V is a 58-meter truck-mounted concrete pump truck designed for efficient and reliable concrete placement in construction projects. It is equipped with advanced technology for high performance and durability. Here's an overview of its features and a reference data sheet.
| Overall | Outline dimension | mm | 14530×2530×4000 |
| Overall | Overall weight | kg | 44000 |
Key Features:
1. High-Efficiency Pumping: The HB58V features state-of-the-art pumping technology, including full hydraulic reversing and integrated casting hydraulic valve technology, reaching international leading levels.
2. Advanced Design: This model is independently developed by XG and is known for its "safety, reliability, environmental friendliness, and leadership" qualities, leading the domestic industry and reaching international advanced levels in overall performance.
3. Innovative Technology: With multiple industry-first technologies and acumulative patent applications9 items (including 1 invention patent), the HB58V stands out for its revolutionary design, including a curved leg support that offers improved stability and safety.
4. Awards and Recognition: The product has won awards such as the China Construction Machinery Annual Product TOP50 (2020) Annual TOP50 Award.
Detailed Photos
Product Parameters
| Overall | Outline dimension | mm | 14530×2530×4000 |
| Overall | Overall weight | kg | 44000 |
| Chassis | Brand | - | Benz |
| Chassis | Model | - | AROCS4143 |
| Chassis | Wheelbase | mm | 2050 + 4300 + 1350 |
| Chassis | Max. power | kW | 300 |
| Engine | Emission | - | China V |
| Theoretical output | - | m³/h | 180 |
| Pumping system | Concrete pumping pressure | Mpa | 10.2 |
| Pumping system | Theoretical pumping times | Times/min | 22 ~ 24 |
| Pumping system | Delivery cylinder diameter × stroke | mm | φ260×2200 |
| Placing boom | Reach height | m | 57.5 |
| Placing boom | Reach depth | m | 40.5 |
| Placing boom | Slewing radius | m | 52.5 |
| Placing boom | Slewing angle | ° | ±270 |
| Others | Transfer valve type | - | Rock valve/S valve |
