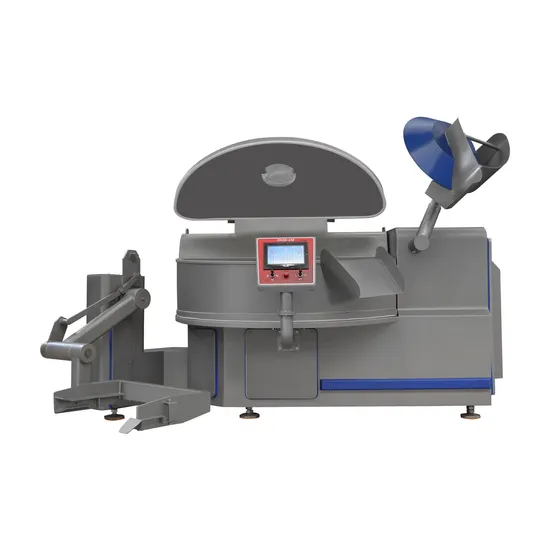

Vacuum Automatic Bowl Chopper/Meat Cutting Machine/Vegetable Cutter High Speed Bowl Cutter

Product Description

Sausage Bowl Cutter/Bowl Chopper/Meat Cutting Machine/meat food machinery/sausage maker machine Product Description


Bowl cutter can cut, stir and emulsify raw meat in vacuum or Nonvacuum as Need , and capacity from 40-500L as need ,prevent myoglobin, fat and other nutritional
components in raw meat from being oxidized and destroyed, thus keeping the original color, smell, taste and
various nutritional components to the maximum extent. By cutting, the fine density and affinity with water of the
product are improved, and the elasticity of the product is improved.
The meat cutting machine materials chopped by the vacuum chopper can improve the yield, reduce bubbles,
enhance elasticity,fine texture, fully extract protein, fully combine the materials with auxiliary materials,
achieve good emulsification effect and ensure product quality.
Vacuum stainless steel bowl Cutter chopper Series is combined with Motor, Germany vacuum pump, USA or Denmark frequency control technology, Sweden bearings, Swiss electrics, Japan PLC and options on much more other imported parts upon requested.
High-graded SUS 304 stainless steel construction with 6 blade knife-headed Cutter.
Smooth surfaces giving the Cutter most sanitary design for easy and fast clean-up.
Innovative axle shaft design.
Automatic water feeding system (optional).
Superior quality solid stainless steel bowl attached with large diameter bearings & guarantees a smooth Vibration-free cutting.
Touch-Screen Monitor System (All movements - Loading/Unloading, Bowl cover, Knives & Bowl Speed, Vacuum system, Batch No, Time of process, Products temperature, Volume of water added, Fault diagnostics) by touch of a finger on Coloured LCD display.
Designed with observation windows and material filling hole.
Smooth control cut-mixing rotations and bowl rotations gives a wide range of programmes which can be used in every cutting process.


Product Parameters

Model	Volume (L)	Cutting Speed (r/min)	Pot Speed (r/min)	Discharger Speed (r/min)	Power(KW)	Cutter Quantity(Pc)	Rated Voltage (V)	Vacuum Level (Mpa)	Weight (Kg)	Dimensions (mm)
ZK-125	125	300-4200	0-10	Infinately variable drive(Speed gear-shift is also available upon request)	35.2	6	380	-0.085	2425	2160*1750*1300
ZK-200	200	400-4000	0-10		86.4	6	380	-0.085	4100	3280*2590*1500
ZK-330	330	360-3600	0-6		102.4	6	380	-0.085	5000	3850*3000*1750
ZK-420	420	360-3600	0-6		144.4	6	380	-0.085	5800	3940*3030*1850

Packaging & Shipping

WorkShop
Certifications
Customer Feedback

FAQ
our Services
1)Design and manufacture the equipment
2)inspect and running all machine before dispatch.
3)Engineers avaliable to service machinery overseas.
4)one year quality guarantee.
5)24 hours technical support by e-mail.
6)English or need language software,user manual.
7)whether you need one machine or a complete line,we design and build machinery that delivers the most
reliable and effcient performance for your products.
FAQ:
1)Question :what is the choice of installation mode for foreign customers?
Answer:we can provinde the video and user manual of the installation mode,
if your need us to send someone to install it,we can provide it .
2)Do your supply factory visits?
Answer:We welcome the customer to visit us,your can make an appointment with us in advance.
3)Question:our the comapny is a direct manufacturer or trading company.
Answer:our company is a direct manufacturer,No middleman make the difference.we can provide your with
best quality product at the right price.
4)What is the payment term?
Answer:we support T/T,L/C.
5)Question:How do we choose the right model for us?
Answer:When you tell me your demand,we will help yourr to choose the right model.
