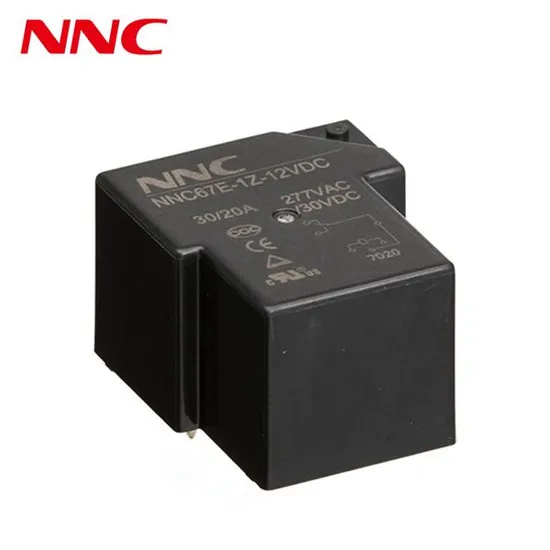

Miniature PCB Relay NNC67E-Z (T90) 30A 40A 4/5 Pins

Product Description

Product Description
Product Parameters Model Description

Dimension		32mm*27.5mm*19.8mm
Contact Feature	Form	1Z(SPDT); 1H(SPST-NO); 1D(SPST-NC)
	Rated load	30A	40A
	Max switching voltage	277VAC/30VDC
	Contact resistance	≤100mΩ
	Material	Ag Alloy(AgSnO2; AgCdO)
	Electrical life	≥1*105
	Mechanical life	≥1*107
Operate voltage (23ºC)		DC:≤75%*Rated voltage, AC:≤80%*Rated voltage
Release voltage (23ºC)		DC:≥10%*Rated voltage, AC:≥30%*Rated voltage
Maximum voltage (23ºC)		110%*Rated voltage
Coil voltage		DC3-110V, AC6-240V (Customize allowed)
Coil power		DC: 0.93W, AC: 1.5VA
Pick-up time		≤15ms
Release time		≤10ms
Dielectric strength	Between Same-pole contacts	2500VAC for 1min/4500VAC for 1min
	Between contacts and coil	1800VAC for 1min
Insulation resistance		≥100mΩ(500VDC)
Ambient temperature		-55ºC ~70ºC
Ambient humidity		35%-80%RH
Atmospheric pressure		86-106KPa
Shock resistance		10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance		10-55Hz (double amplitude: 1.5mm)
Installation		PCB
Weight		Approx. 24g/PCS
Packing	Carton with paper box inside	500PCS/Carton, G.W.: 13KG, N.W.: 12KG, Dimension(mm): 360×210×325
