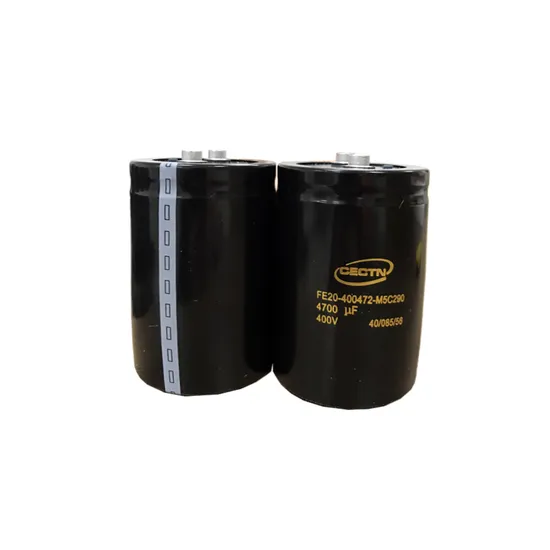

Screw Terminal Aluminum Electrolytic Capacitor 4700UF 400V
| US$21.00 | 1 Piece (MOQ) |
Basic Info.
Packaging Type
Surface Mount
Capacitance
4700UF
Structure
Variable Capacitor
Manufacturing Material
Electrolytic
Filter
Aluminum Electrolytic Capacitor
Name
4700UF 400V High Frequency Aluminum Electrolytic C
Rated Voltage
400V
Rated Capacity
4700UF
Temperature
85
Installation
Clamp Fixed
Lifespan
2000h
Color
Black
Package Size
77*115mm
Weight
About 648g
Surge Voltage
450V
Transport Package
Standard Export Package
Specification
different size
Trademark
CECTN
Origin
China
HS Code
8504409999
Production Capacity
10000 Sets/Month
Product Description
Screw Terminal Aluminum Electrolytic Capacitor 4700UF 400V1.Basic Parameters:
| 400V4700μF Basic parameters | |||
| Rated voltage | 400v | Rated Capacity | 4700μF |
| Temperature | 85ºC | Lifespan | 2000h |
| Weight | about 648g | Package Size | 77*115mm |
| Installation | Clamp fixed | Accessories | Screw M6*12(2PCS) |
| Quantity | 12pcs/Ctn | Accessories | Clamp (1PCS) |
2.Performance Parameters
| 400V4700μF Performance parameters | |||||||
| Rated voltage(V.DC) | Surge voltage(V.DC) | Rated Capacity (μF) | Capacity deviation (%) | Loss tangent (MAX) | ESR typical value (mΩ) | Leakage current mA , MAX, 5min | Rated ripple current (A) |
| 400 | 450 | 4700 | -20~+20 | 0.2 | 28 | 5 | 11.7 |
| At 120Hz 20ºC | 85ºC 120Hz | ||||||
| Climate Category Environmental Category : 40/085/56 | |||||||
3.Overall structural dimensions
4.Internal structure drawing
| D: 76.9mm | d2MAX: 13.2mm | L: 113mm | L1: 118.8mm | Screw: M5X12 |
| c: 88.9mm | d: 98.4mm | a: 31.7mm | H: 30mm | number of casing: 2 |
5.Description of bolt type electrolytic capacitor bushing (double layer bushing, negative pole identification)
6.Description of bottom coding of bolt type aluminum electrolytic capacitor
7.Packing
8.Bolt electrolytic capacitor production process
