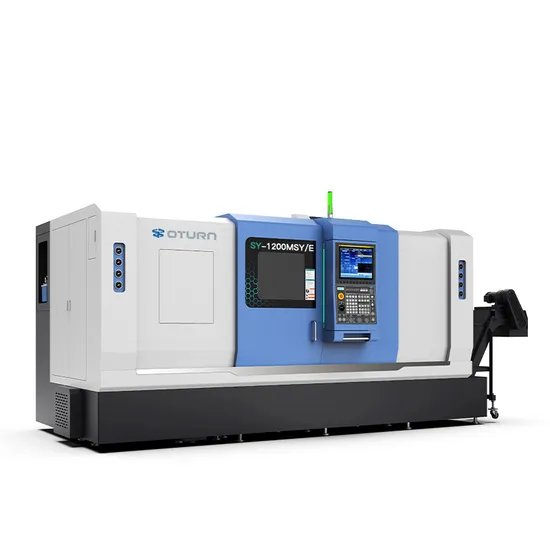

High Efficiency CNC Double Spindle Turning Center Lathe Esy1200msy with Y-Axis

Product Description

Product Description
The two-axis lathe can process both ends of the workpiece at the same time in one clamping, which greatly simplifies manual operations, increases output and reduces processes. The second spindle enables full turning and expressly transfers workpieces during machining, thereby reducing cycle times. The machine adopts an optimized 30-degree inclined structure design, which also has high precision, super rigidity and excellent cutting stability. The strong structural lathe bed is made of one-piece high-strength HT300 cast iron and uses finite element analysis. The overall mechanical rigidity and stability are excellent, and it can maintain long-term reliable accuracy, improve processing stability and tool life, and stress relief treatment improves accuracy stability. The high-strength roller linear rail design structure, the transmission system adopts screw pre-tension design to improve the rigidity performance, and the simple and elegant appearance is in line with the trend of the trend. Main features of this machine tool: 1. Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, adopt a rear-mounted rotor, which makes installation and maintenance faster, the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product. 2. High rigidity integrated design servo power turret. It helps the servo turret's rapid and accurate tool changing performance, and when coupled with the power milling of a high-speed power axis, it achieves excellent turning and milling combined processing capabilities. The tool holder is installed using a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor. 3. The machine tool is equipped with roller linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method, which can make the heat The amount of displacement is minimized, greatly improving processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life. 4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. 5. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various functions can be designed and installed according to the special requirements of the user. A special fixture. Product Parameters

Item	Name	Unit	SY1200MSY
Travel	The largest diameter rotating bed	mm	Φ800
	Max. processing diameter	mm	Φ480
	Max.Swing Over Cross Slide	mm	Φ450
	Max. processing length	mm	970
Main-Spindle Hydro cylinder Chuck	Spindle nose	type	A2-8
	Max. speed of spindle	rpm	2200
	Hydraulic Cylinder/Chuck	lnch	10″
	Spindle hole diame	mm	Φ86
	Bar diameter	mm	Φ72
	Spindle motor power	kw	24
	Spindle motor power	Nm	160-390
Sub-Spindle Hydro cylinder chuck	Spindle nose	/	A2-6
	Max. speed of spindle	rpm	4300
	Hydraulic Cylinder/Chuck	/	8"
	Spindle hole diame	mm	Ф66
	Bar diameter	mm	Φ52
	Spindle motor power	kw	18/22KW
	Spindle motor torque	Nm	105-227
X/Z/S axis feed	X/Z travel	mm	280/1070
	Y/S travel		120(±60)/800
	X/Z/S axis rail specification	spes	45/45/35(Roller)
	X/Z shaft wire specifications	mm	4012
	X/Z/Y/S motor power	kw	2.9/2.9/1.8/2.9
	Positioning accuracy	mm	±0.005
	Repeat positioning accuracy	mm	±0.003
	X/Z/S axis moving fast	m/min	24/24
Servo drive Cutter	The knife tower type	pcs	BMT65-12T
	Power cutter tower motor	Kw/Nm	5.0/47.7
	Max.speed of	rpm	5000
	The knife biock specifications	mm	25X25
	Circular cutter holder specification	mm	Φ50
	The adjacent tool change time	sec	0.2
	Positioning accuracy	/	±2"
	Repeat positioning accuracy	/	±1"
Mechanical Size	Machine size	mm	3900x2110x2100
	Machine Weight	kg	7800
Other	Cutting fluid tank volume	L	300
	Cooling water pump power	W	750
	Volume of hydraulic unit box	L	40
	Hydraulic oil pump motor power	kw	1.5
	Volume of lubricating oil tank	L	2
	Auto lube pump motor power	W	50
