Advanced Lsy219-15 Screw Conveyor for Streamlined Material Flow

Product Description

Product Description

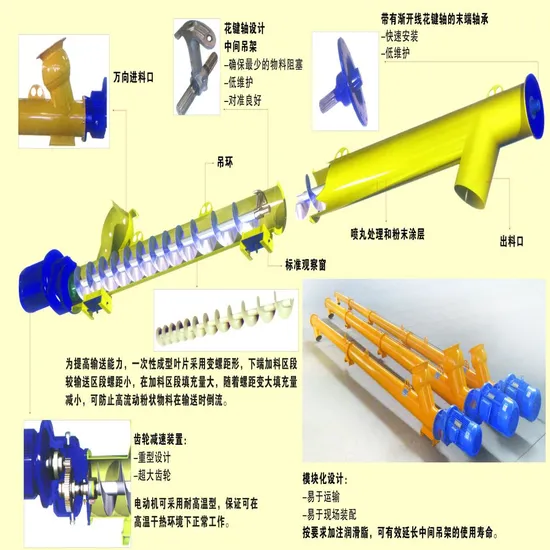

Key features:
1. Energy Conservation, environmental protection, Modular design
2. High conveying efficiency and convenient loading and unloading.
3. Flexible Process Layout
4. Adopt one-time forming continuous blade, variable pitch type
5. Adopt Casting Aluminum Alloy Intermediate Hanger Connection, longer wear-resistant service life
6. The use of domestic first universal feed mouth, more conducive to installation, production
7. Multi-section assembly, easy to transform.
technical parameter:

type	power (kW)	conveying length L(m)	conveying angle α(°)	conveying capacity(t/h)	D1	D2	n-d	B
LSY168-6	4	6	≤45	25	300	330	8-φ14	10
LSY168-9	5.5	9	≤45	25	300	330	8-φ14	10
LSY168-12	7.5	12	≤45	25	300	330	8-φ14	10
LSY219-6	7.5	6	≤45	60	300	330	8-φ14	10
LSY219-9	11	9	≤45	60	300	330	8-φ14	10
LSY219-12	11	12	≤45	60	300	330	8-φ14	10
LSY219-15	15	15	≤45	60	300	330	8-φ14	10
LSY273-9	11	9	≤45	90	300	330	8-φ14	10
LSY273-12	15	12	≤45	90	300	330	8-φ14	10
LSY273-15	15	15	≤45	90	300	330	8-φ14	10
LSY323-9	18.5	9	≤45	110	370	420	8-φ18	15
LSY323-12	22	12	≤45	110	370	420	8-φ18	15
