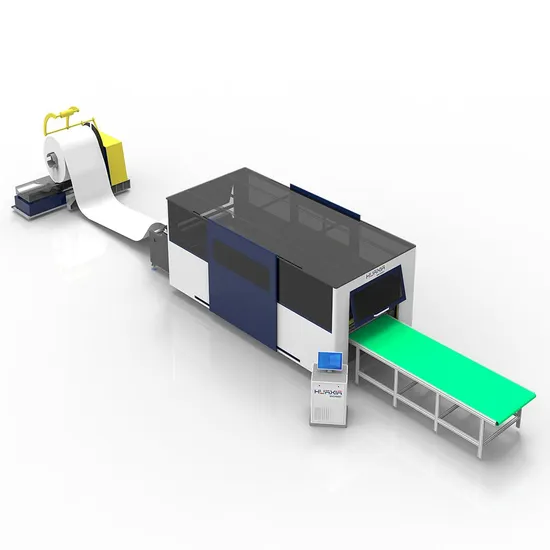

Coil Laser Systems Fiber Laser Cutting Machine Combine Advantages of Coil and Laser
Basic Info.
Model NO.
HXF-1540
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber Laser
Laser Technology
Laser Cutting
Laser Power
1500W 2000W 3000W
Laser Head
Shanghai Empower
Control System
China Cypcut
Motor and Drive
Japan Yaskawa 850W
Reducer
Japan Shimpo
Pneumatic Parts
Korea
Water Chiller
Cw6200
Transport Package
Plywood Case After Packed by Wrapping Film
Specification
1500*3000mm
Trademark
HuaXia
Origin
China
HS Code
8456110090
Production Capacity
30 Sets/Month
Product Description
Steel coil laser cutting machineProduct Name: Roll Material Laser Cutting Machine Production Line
The coil laser cutting machine production line is specialized in the application of Coils racks, decoiler, automatic loading, cutting, automatic unloading achieving full process automation and continuous cutting production, saving time, materials, and labor. The innovative design of the unique hydraulic unwinding machine allows the weight of the coil material to reach 8T/10T/15T in a single feeding, breaking through the tonnage limitations of traditional feeding equipment in the past. After uncoiling the coil, it is leveled by a leveling machine to fully release the stress on the sheet, making it smoother and achieving better cutting. It can be used for batch processing of various types of coils, such as carbon steel coils, galvanized coils, and stainless steel coils.
| model | HX-3015 | HX-4015 | HX-6015 | HX-3020 | HX-4020 | HX-6020 |
| Processing dimensions | 3000*1500mm | 4000*1500mm | 6000*1500mm | 3000*2000mm | 4000*2000mm | 6000*2000mm |
| Laser generator power | 1500W/2000W/3000W/6000W | |||||
| positioning accuracy | ±0.05mm | |||||
| repeatability | ±0.02mm | |||||
| Maximum movement speed | 120m/min | |||||
*The above parameters are experimental data for reference only. For details, please contact relevant personnel for confirmation!
