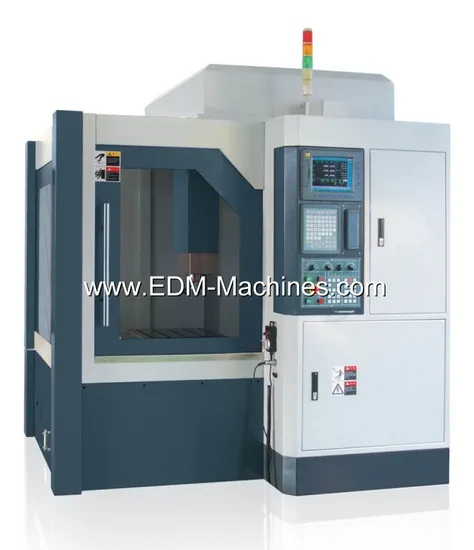

High Quality CNC Engraver Machine Hqjx-1580

Product Description

CNC Milling&Engraving Machine
This milling&engraving machine has provide wide scope of machining, such as milling, boring, drilling, tapping and various processes, especially suitable for machining various two-measure or three-measure concave-convex modes with complicated shapes and complex cavities and surfaces, as well as machining batch parts in various enterprises` workshop
This machine composed carving function and milling function, it can engrave precision drawing and emboss on kinds of material like aluminum, brass, steel and nonmetal material.
1. Senior Meehanite FCD45C resin sand cast iron material
2. Full cover, separated cutting oil system, Chip-conveyor
3. Taiwan Syntec control system
4. X, Y, Z-axis adopt high precision imported linear guideway with big loading capacity and high positioning accuracy feature
5. The high-precision grinding grade ball screw, double nuts automatic transmission, high precision
6. The precision coupling, high speed, high torque, do not slip;
7. Hand controller
8. Automatic center lubrication system
9. High-performance control system, very easy to operate
10. The oil cooling system inside spindle. Outside cutting cooling system
11. The high-power, high-speed spindle oil cooler
12. Precision ER collet
13. The software is compatible with MaterCAM, Pro-E, UG, carving and other software, simple operation, widely used.
CNC Engraving Milling Machine HQJX-1580B Specification

Item	Unit	HQJX-500B	HQJX-545B	HQJX-650B	HQJX-860	HQJX-1060	HQJX-1580
Dimensions(L*W)	mm	2230*1350	2300*1159	2300*1700	2440*1990	2700*1800	3200*1600
Machine weight	kg	2800kg	3200kg	3500kg	4300kg	5500kg	6700kg
Table size	mm	550*480	550*480	500*600	800*600	1000*600	1200*600
Table load	kg	200	250	300	400	500	500
Spindle speed	RPM	24000	24000	24000	24000	24000	24000
Spindle power	KW	4	4	5.5	5.5	5.5/7.5	5.5/7.5
Spindle Taper		ER20	ER20	ER20/ER25	ER20/ER25	ER20/ER25	ER20/BT30
Dirver type		Direct	Direct	Direct	Direct	Direct	Direct
X-axis travel	mm	550	550	600	680	680	800
Y-axis travel	mm	450	450	500	780	1000	1500
Z-axis travel	mm	220	250	250	330	330	330
Distance spindle to table	mm	120-370	120-370	120-370	70-390	70-390	150-400
The distance between the two columns	mm	60-15m00	575	760	760	760	760
Positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeat accuracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Cutting feed	m/min	1-8	1-8	1-8	1-8	1-8	1-8
Fast feeding (X / Y / Z)	m/min	0-15m	0-15m	0-15m	0-15m	0-15m	0-15m

CNC Engraving and Milling Machine Parts List

No.	Parts	Description (Brand)
1	The main cast	Quality resin sand casting
3	Drive motor	Yaskawa
4	Ball screw and nut	Taiwan Yintai PMI
5	Ball screw bearings	Japan NSK
6	Couplings	Germany R + W
7	Spindle cooler	Taiwan wave Intel
8	System	Taiwan's new generation
9	Hand-held remote control unit	Dedicated control handwheel
10	Relays	Omron
11	Low voltage control	Schneider
12	Fuel system	Taiwan Yu Xiangrong oil supply system
13	Stroke control switch	Japan BNS
