Ca6161 Ca6261 Conventional Horizontal Gap Bed Metal Lathe

Product Description

CA6161 CA6261 Conventional Horizontal Gap Bed Metal Lathe

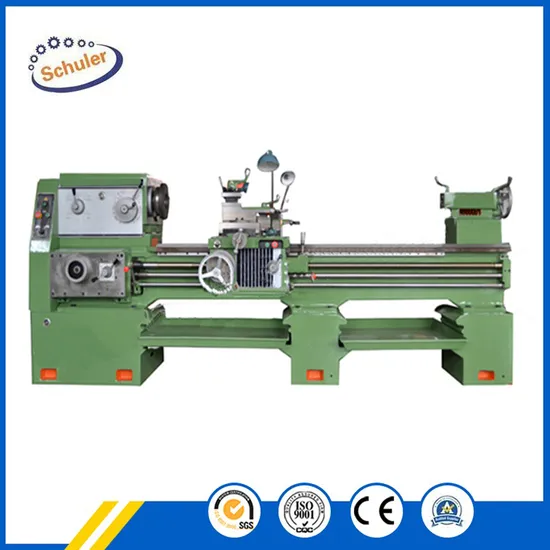

Product Picture:
Product Features :
1. Machine headstock and bed. Tail seat. Manually scrape the tray between the joints. The machine has been rigorously tested to ensure the accuracy and stability of the machine.
2. The machine tool uses high-strength cast iron and adds special materials such as copper and chrome. The bed rail width is 400mm and the bed rail quenching depth is 4mm, which effectively improves the wear resistance and stability of the machine tool.
3, head bed box lubrication using cycloidal pump for cyclic forced lubrication. It protects the headboard from the clean and heat-dissipating properties of the hot southern weather, effectively extending the life of bearings and gears.
4. The machine tool spindle adopts Wafangdian bearing, the spindle through hole is φ52mm, and the machine tool gear adopts precision grinding, which effectively improves the gear hardness and reduces the machine noise.
5. The machine tool adopts domestic brand screws, and the silk mother adopts high-quality bronze alloy to ensure wear resistance and precise maintenance.
6. The machine tool adopts four-station high-strength tool holder. The tool holder size is 25x25mm.
Standard accessories:
1.3-jaw chuck
2.center¢re sleeve
3.wrenches
4.oil gun
5.operation manual
Optional accessories: 1.Steady rest
2.Follower rest
3.4-jaw chuck
4.Face plate
5.Thread chasing dial
6.Longitudinal automatic trip
7.Live center
8.Quick change toolpost
9.Taper copy ruler
10.4-position longitudinal trip
Metal Lathe Technical Parameters:

Specifications	Unit	CA6161/CA6261
Max.Swing over bed	mm	610
Max.Swing over carriage	mm	370
Max.Swing in gap	mm	830
Effective gap length	mm	210
Max.Length of work piece	mm	750mm-40000
Width of bed	mm	400
Section of turning tool	mm	25×25
Spindle speeds	rpm	10-1400/16-1400(24 steps)
Hole through spindle	mm	52,(80),[105]
Spindle taper		Mohs6(MT6)(Ф90 1∶20)[Ф113 1∶20]
Number of feeds		64Species(kinds)(for each)
Range of metric threads(kinds)	mm	(1-192mm)44Species(44 kinds)
Range of inch threads(kinds)		(2-24tpi)21Species(21 kinds)
Range of module threads(kinds)		0.25-48(Modulus39Species)(Module 39 kinds)
Range of pitch threads(kinds)		1-96DP(37Species)(37kinds)
Max.Tail stock spindle travel	mm	150
Tail stock spindle diameter	mm	75
Taper of tail stock spindle center hole		Mohs5(MT5)
Main motor	kw	7.5(10HP)
Overall dimensions for750	mm	2550×1140×1750
Overall dimensions for1000	mm	2700×1140×1750
Overall dimensions for1500	mm	3200×1140×1750
Overall dimensions for2000	mm	3700×1140×1750
Overall dimensions for2200	mm	4030×1140×1750
Overall dimensions for3000	mm	4850×1140×1750
Overall dimensions for4000	mm	5800×1140×1750
Weight for 750	mm	2300
Weight for 1000	mm	2380
Weight for 1500	mm	2577
Weight for 2000	mm	2940
Weight for 2200	mm	3120
Weight for 3000	mm	3600
Weight for 4000	mm	3950

Brand Image:
As a professional manufacturer of lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
Metal Lathe Details Picture:
Metal Lathe In the Workshop:
Metal Lathe Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
