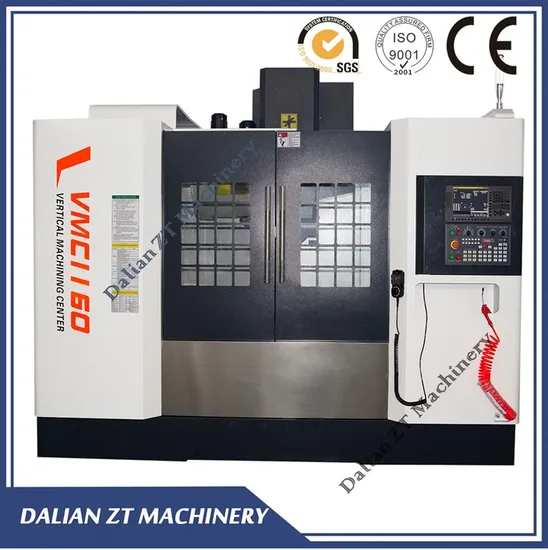

Economic High Speed Vertical Machining Center CNC Milling Machine 24 Tools VMC1160

Product Description

Features
VMC1060 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the small size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automative part, mold etd;
With Taiwan high speed spindle to 10000rpm;
High accuracy; High speed; High rigidity; Low noise
Main technical parameters
1. Travel
X-axis:1100mm
Y-axis:600mm
Z-axis:600mm
Distance from spindle nose to table surface: 120-720mm
Distance from spindle axis to column surface: 650mm
2. WorktableTable size: 1200×600mm
Max. loading: 800kg
T-slot width: 18
T-slot quantity: 5
3. SpindleSpindle taper: BT40
Spindle speed: 10000/12000rpm
Spindle motor: 7.5/11kW
4. ToolMax. tool dia.:φ80/φ150mm
Max. tool length:200mm
Max. tool weight.:8kg



WORKSHOP
CUSTOMERS' VISITING & EXHIBITION
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
