China Wood Wide Belt Sander Machine Wood Planer Sanding Machinery
Basic Info.
Model NO.
ZDP-R-RP1000
Automatic Grade
Semiautomatic
Variable Speed
Variable Speed
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
Online Services and Video Services
Target Audience
Wood Working Population, Wholesaler and Retailer
Edition
Latest Edition
Special Service
Optional Upgrade
Character
Thick and Solid
Transport Package
Plywodd Cases
Specification
1750*2450*2050mm
Trademark
QDZD
Origin
Qingdao, China
HS Code
84659300
Production Capacity
50 Sets/Month
Product Description

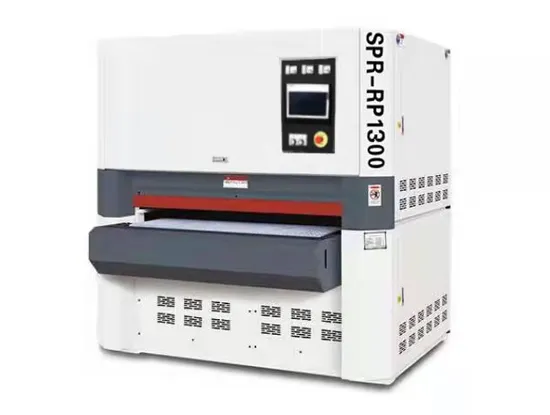

ZDP-R-RP1000 Three Rollers Planing Sanding Machine Wide Belt Sander with PlanerZDP-R-RP1000
Product Description
Here are three different sizes of Wide Belt Sanding Machine.
ZDR-RP1000' details are below:
| Model | ZDP-R-RP630 | ZDP-R-RP1000 | ZDP-R-RP1300 |
| Max working width | 630mm | 1000mm | 1300mm |
| Material thickness | 10-100mm | 10-100mm | 10-100mm |
| Min. Working length | 500mm(option400mm) | 500mm(option400mm) | 550mm(option400mm) |
| Feeding speed | 5-25m/min | 5-25m/min | 5-25m/min |
| Size of sanding belt | 650*1900mm | 1020*2020mm | 1320*2020mm |
| Total power | 29.5kw | 41kw | 81kw |
| Working air pressure | 0.6mpa | 0.6mpa | 0.6mpa |
| Volume of dust collecting | 6500m³/h | 15000m³/h | 15000m³/h |
| Speed of dust collecting | 25-30m/s | 25-30m/s | 25-30m/s |
| Overall dimension (L*W*H) | 1450*2450*2050mm | 1750*2450*2050mm | 2150*3000*2050mm |
| Weight | 3000kg | 3600kg | 4500kg |
Detailed Photos
Here are optional parts:
Company Profile
Installation Instructions
We have various models of wood belt sanding machine.Here are examples.
If you are interested,please click on it,you can jump to the relevant interface.
1.Lacquered Sanding Machine
2.Calibrate Sanding Machine
3.Sliding Table Saw
Packaging & Shipping
After Sales Service
