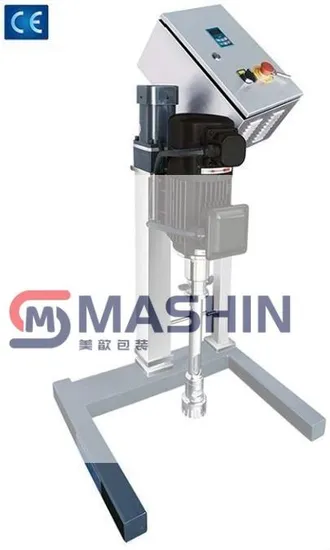

China Manufacturer of Homogenizer with Three Levels Hight Speed Homogenizer

Product Description

Product Description High speed and shear rate are the most important for obtaining ultra -fine suspension emulsion. According to the special requirements of some industries, the shear rate can exceed 12000rpm and the rotor speed can reach 44m/s. Within this speed range, the turbulence combined by the shear force combined with the specially developed motor can make the particle size range to the nano -level. The shear force is stronger and the particle size of the lotion is narrow.
The third -level high -scissors emulsion machine is mainly used for the production of micro -emulsion and ultra -fine suspension emulsion. Because the three groups of decentralized heads (stator+rotor) in the work cavity are also working at the same time. After the lotion is cut high, the droplets are more delicate and the particle size distribution is narrower, so the stability of the generated hybrid fluid is better. The three groups of scattered heads are easy to replace, suitable for different process applications. Different types of machines in this series have the same line speed and shear rate, which is very easy to expand large -scale production. It is also in line with CIP/SIP cleaning standards, suitable for food and pharmaceutical production.

Detailed Photos

• High throughput combined with excellent grinding results
• Customize different grinding heads to achieve various grinding shear rates
• Infinitely adjustable stator/rotor gap setting for reduced particle size control
• Suitable for materials in various viscosity ranges up to 50,000 mPas
• Able to operate at pressures up to 16 bar
• Easily scale up production from laboratory machine development to mass production machines
• All wetted parts are 316L or 316Ti stainless steel
• High-performance mechanical seal with wear-resistant material
• High quality surface treatment for easy cleaning
• Other materials and finishes available on request
• The machine can auTomatically drain water and has CIP and SIP functions
• Low noise

Product Parameters type of model as below:

model	vlum L/H	speed rpm	speed m/s	spower KW	enter size	exit
ZRH2000/4	300	14000	44	4	DN25	DN15
ZRH2000/5	1500	10500	44	11	DN40	DN32
ZRH2000/10	3000	7500	44	22	DN50	DN50
ZRH2000/20	10000	4900	44	37/45	DN80	DN65
ZRH2000/30	20000	2850	44	75/90	DN150	DN125
ZRH2000/40	40000	2000	44	160	DN200	DN150

applications industry
Packaging & Shipping
