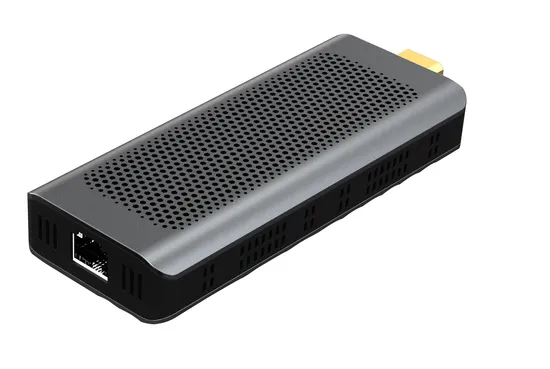

Mini PC with Gemini Lake J4125 for Office 8GB Lpddr4 HDMI RJ45 LAN
Basic Info.
Model NO.
CM29-5
Network Mode
WiFi, 3G, 4G
Hard Disk Capacity
≥128g
Webcam
Webcam
Battery Capacity
＞8000mAh
Built-in Bluetooth
Built-in Bluetooth
Built-in Microphone
Built-in Microphone
Card Reader
Card Reader
Front Camera Pixel
0.3MP-1MP
Fingerprint
Fingerprint
Screen Size
Without Screen
Screen Type
Without Screen
CPU Type
Windows
CPU Core
I5 11 Th Gen
Customized
Support Customized
HDMI
Input
Panel Voltage Select
3.3V/5V/12V
Standby Consumption
<0.5W
Material
Aluminum Alloy
Input Voltage
12V
Earphone Input
0.2 ~ 2.0 V RMS
Format
up to 8K
Transport Package
Box
Trademark
No Brand
Origin
China
HS Code
8466939000
Production Capacity
250, 000pieces/Month
Packaging & Delivery
Package Size
12.00cm * 6.00cm * 6.00cm
Package Gross Weight
1.000kg
Product Description
| Product Appearance | |||
| Type | Spec. | Standard Configuration | Optional |
| Product | Product Type | MINI PC, Ad Terminal Box | |
| Dimension | 130mm*50mm*19.5mm | ||
| Case Material | Plastic | ||
| Weight | Net Weight 113g,Gross Weight 274g | ||
| System Hardware Configuration | |||
| Type | Spec. | Description | Optional |
| CPU | Model | Gemini Lake&Gemini Lake Refresh J4125 | Optional |
| Speed | 2.0GHz | ||
| Max. Turbo Speed | 2.7GHz | ||
| Power Consumption | 10W | ||
| Memory | Model | LPDDR4 | |
| Capacity | 6GB | Optional | |
| Storage | EMMC | 128GB | Optional |
| SSD | / | ||
| 2.5'' SSD | / | ||
| TF Card | / | ||
| RTC | BIOS | Real-time Clock, Time Boot | |
| Auto Power On | BIOS | Support auto power on after electrified | |
| Diskless Network | BIOS | Support uefi/Legacy Diskless Switch On | |
| TPM | CPU integratesTPM | Support TPM 2.0 | |
| Triple screen output | Video Output | / | |
| Internet Connection | |||
| Type | Spec. | Description | Optional |
| WIFI | Model | intel 7265/ 3165/ RTL8821CE On Board | Optional |
| Protocol | IEEE 802.11 a, b/g, n, ac | ||
| Bluetooth | Model | intel 7265/ 3165/ RTL8821CE On Board | Optional |
| Protocol | Support Bluetooth 4.2 | ||
| 3G | Built-in | No | |
| 4G | Built-in | No | |
| Ethernet | LAN1 | 10M/100M/1000M Self-adaption | |
| I/O | |||
| Type | Spec. | Description | Optional |
| USB | USB2.0 | / | |
| USB | USB3.0 | USB3.0 Type-Ax2 | |
| TF | Expansion Memory | / | |
| HDMI | AV Output | HDMI 1.4b Type A x1 | |
| VGA | Video Output | No | |
| RJ45 | Gigabyte Ethernet | RJ45 x1 | |
| Uart | Data Transmission | No | |
| POWER | Power Button | x1 | |
| DC IN | Power Supply Input | 5.5/2.1mm DC Jack x1 | |
| Audio-in/out | Audio-in/out | / | |
| Antenna1 | FPC Antenna | WiFi 2.4+BT x1 | |
| Antenna2 | FPC Antenna | / | |
| SIM | Micro SIM | No | |
| Software Configuration | |||
| Type | Spec. | Description | Optional |
| OS | Version | Win10 pro/ Ubuntu | |
| Environment | |||
| Type | Spec. | Description | Optional |
| Environment | Working Temperature | 0~40ºC | |
| Memory Temperature | -20~60ºC | ||
| Humidity | 90% @ 40 °C (No Condensation) | ||
| Accessory | |||
| Type | Spec. | Description | Optional |
| Power Supply | Vesa | Input 100~240V 50/60Hz Output 12V/2.5A, 5.5*2.1mm | |
| IR Remote Control | No | ||
| VESA Mount | No | ||
