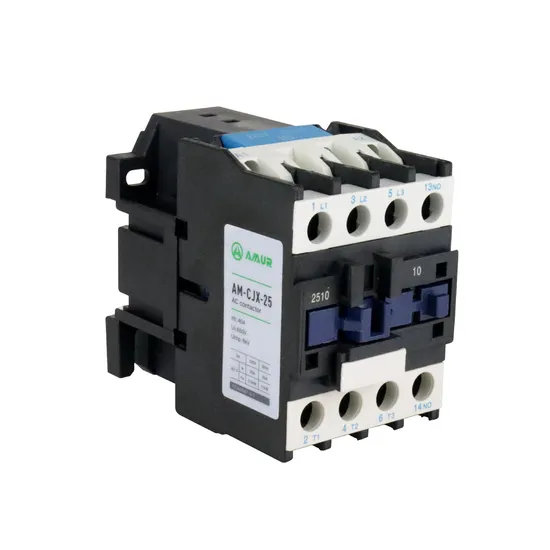

Amur Cjx2-2510 25A 3p AC Contactor 220V
| US$1.89 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
AM-CJX-25
Phase
3
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
9A-95A
Type
Ac Contactors
Frequency of Operation
300-1200 Times/Hour
Mechanical Life ( Times)
6, 500, 000 - 12, 000
Auxiliary Contacts
1no+1nc
Rated Voltage
220V~690V
Standard
IEC 60947-1, IEC 60947-4-1
Installation
DIN Rail / Screw Installation
Transport Package
Standard Packing
Trademark
AMUR or OEM
Origin
China
HS Code
853630000
Production Capacity
800000 Set/Week
Packaging & Delivery
Package Size
20.00cm * 10.00cm * 15.00cm
Package Gross Weight
1.500kg
Product Description
General CJX2s series AC Contactor with artistic appearance and compact structure is suitablefor using starting & controlling the AC motor frequently, switching on and off thecircuit at a long distance. it is used in combination with thermal relay to compose amagnetic motor starter.Certification:CE, CB, TUV.
Rated operation current(le): 9-95A;
Rated operation voltage(Ue): 220V~690V;
Rated insulation voltage: 690V;
Poles: 3P;
Auxiliary contacts: 1NO+1NC,
eInstallation: Din rail and screw installation
Standard:lEC 60947-1.EC 60947-4-1.
