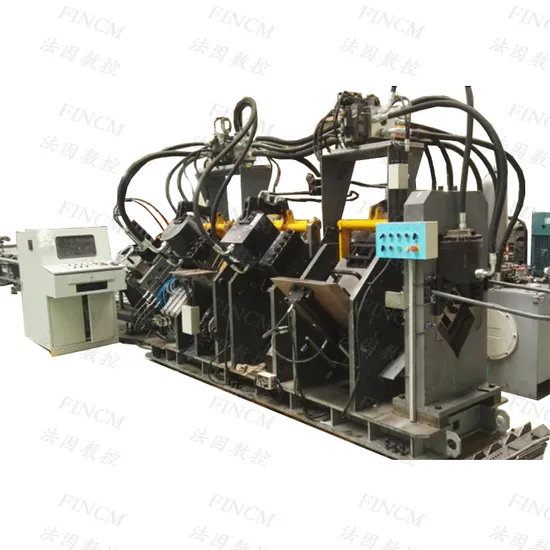

APMH1412S FINCM Tower Power Transmission Line CNC Automatic Punching Marking Cutting Notching Machine
It is mainly used for customers to manufacture angle steel components, complete notching, typing, punching, fixed length cutting on angle steel. Simple operation, high production efficiency.

Technical specification of APMH1412S:

Processing range of angle profile (For punching holes, shearing to length, and marking numbers/letters)	Min.∠38×38x3 mm~ Max.∠140×140x12 mm
Processing range of angle profile (For making diagonal cut at 45°)	Min.∠38×38x3 mm~ Max.∠80×80x8 mm
Maximum punching hole diameter (Round hole)	φ26mm
Maximum punching hole dimension (Oval hole)	φ22×50mm
Punching tool positions	6 Nos. (both sides 3 Nos. each); (at each side, the middle tool among the 3 tools is for oval hole, the other 2 tools are for round hole.)
Diagonal cutting angle range	0~ 90°(including 45°, of course)
Angle profile raw material length Max.	12m
Angle profile finished material length Max.	8m
Cutting off mode	Single blade shearing (without material waste)
Marking Cassette Nos.	4
Marking characters Nos. for each cassette	18
Marking character dimension	14×10×19mm
Punching force	950kN
Shearing force	1800kN
Marking force	1030kN
Diagonal cutting force	1000kN
Nos. of CNC Axis	3
Feeding speed of angle profile	60m/min
Machining Accuracy	In accordance with China national norm GB/T 2694-2010
Programming mode	Keyboard input, USB interface input. It can be connected with TEKALA software
Layout type	A or B, depends on the client's selection
The finished product channel is turned out to one side by pneumatic power
There are four pieces cross transfer conveyor, which are automatically fed intermittently
The feed and back mark value regulating motors are AC servo motors of world famous brands. The main electrical control components (PLC, CNC system, contactless switch) and hydraulic pneumatic valves (electromagnetic directional valve, overflow valve, unloading valve, hydraulic control check valve) are world famous brand products
The contents of the technical document are subject to the contract and subsequent relevant agreements

Angle feeding Speed: 40m/min, the effiency is about 1000 holes/hour
The finished angle conveyor is rotated to one side by pneumatic power. The max. Length of finished angle is 8 m.
There are four transverse conveyors which can infeed automatically.
Type of programming: Keyboard input, USB interface input, floppy disc input.
Working environment:
Working temperature: 0~ 40 degree
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ± 10%
Frequency: 50 Hz
Main outsourcing components list of APMH1412S:

No.	Name	Brand	Manufacture
1.	AC Servo Motor and Servo Driver	Panasonic	Japan
2.	PLC	Mitsubishi
3.	Electromagnetic unloading valve	ATOS/YUKEN	Italy/ Taiwan(China)
4.	Relief valve	ATOS/YUKEN
5.	Electro-hydraulic directional valve	JUSTMARK	Taiwan (China)
6.	Manifold	AirTAC	Taiwan (China)
7.	Air valve
8.	Air Cylinder	SMC/CKD	Japan
9.	Filter-Regulator-Lubricator Combined Units	SMC/CKD
10.	Contactor	Siemens	Germany
11.	Motor switch	Siemens	Germany
12.	Towline	JFL/CPS	China/South Korea
