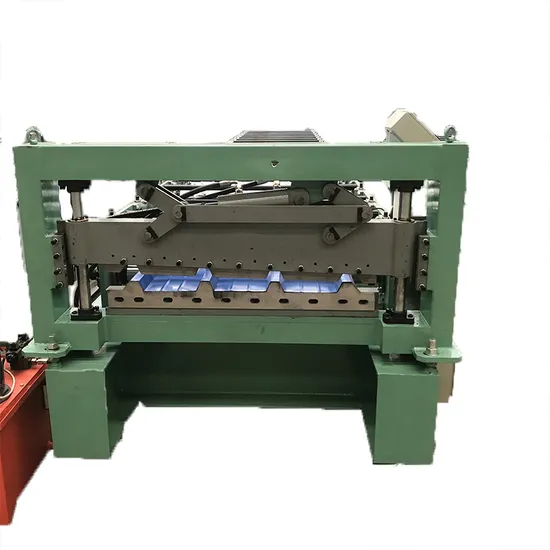

Color Steel Roofing Panel Roll Forming Machine

Product Description

Basic Info

Usage	Roof, Wall, Floor	Transmission Method	Electric
Transport Package	Standard Export Package	Specification	7500*1650*1500
Trademark	ZHONGKE	Origin	Botou
HS Code	8455221000	Production Capacity	30sets/Month

Product Description

Automatic simple metal sheet cut to length machine with high quality

Technical parameters

NO	Type		Specification
1	Raw material	Type	PPGI/GI
		Material width	1250mm
		Thickness	0.3-0.6 mm
2	Decoiler	Operation	Manual
		Weight apacity	5 Tons
3	Roll Forming Machine	Roller station	18 steps
		Diameter of shaft	80 mm-0.01~0.03
		Shaft Material	45# with 0.05mm chrome
		Roller Material	45# Forged Steel
		Transmission	Gear & Sprocket
		Bearing Type	6210
		Under Frame	H-beam
		Sidewall Frame	20 mm Steel Plate
		Driving Type	Servo Motor 7.5KW
		Cutting Type	Guide Pillar with Electrical Motor 3.0KW
		Cutting Blade	Cr12Mov
		Voltage	380V/50HZ, 3 phase
		Working speed	20-25 m/min
5	Control box	Electric box	Import Brand PLC control system, inventer
		PLC brand	Delta/Siemens/Pansonic
		Inverter brand	Delta/Siemens/Sanjing
		Language	Chinese / English

Process Drawing

Company Profile

Our factory is a professional Roll Forming Machine manufacturer with 17 years experience,we have 100 well trained workers and 20,000m'(square meters) workshops.Specializing in the production of various types of tile press equipment,the development and production of automatic intelligent control tile press equipment production line, C type steel, dust collector anode plate and other equipment.Our factory can design and produce various special-shaped cold-bending forming equipment according to the different needs of users.

Why Choose Us

Our machine
Other machine
Our customers

Packaging & Shipping

FAQ

Q: Can one machine only produce one size? A: Not exactly, it depends on the machine. Q: Do you have after-sales support? A: Yes, we are happy to give advice and also have skilled techniciansavailable to maintain the machine if needed. Q: How to visit your company? A: We can pick you up from Shanghai or Hangzhou airport. Or railwaystation Shaoxing North. Q: What can you do if the machine is broken? A: Our machine's warranty period is 12months. if the broken parts can'trepair, we can send the new parts to replace the broken parts, butyou need to pay the express cost by yourself. if after the warrantyperiod, we can through negotiation for solving the problems, and wesupply the technical support for the whole life of the equipment. Q: Can you be responsible for transport? A: Yes, please tell us the destination port or address. we have rich expe-rience in transport. Q: You are a trade company or factory? A: We are a Manufacturer. Q: Why your price is higher than others? A: As we persist on that each factory should put quality in the first place.We spend time and money on developing how to make machinesmuch more automatic, accurate, and high quality. We can make surethat our machine could use more than 20 years without any problem. Q: Do you have overseas engineers? A: Yes, we not only provide overseas engineers but also provide techni-cal training. Q: Do you provide customized? A: Sure, we can design the equipment according to the data of thestructural section you provide. We are a professional sheet metalforming machine designer and manufacturer.
