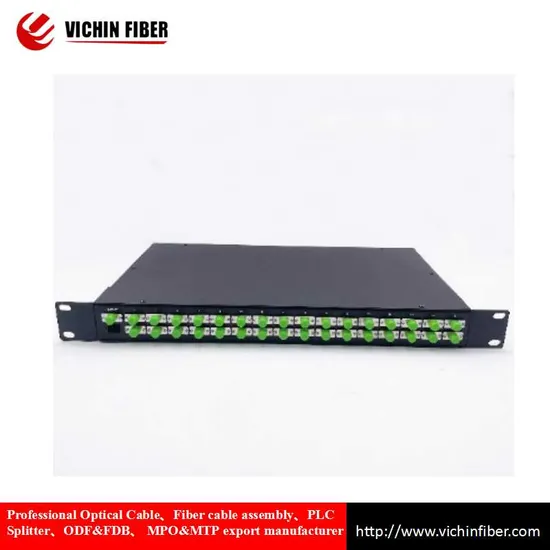

19inch 1u 1X32 Fiber Optic FC/APC Rack Mount PLC Splitter

Product Description

1X32 Fiber Optic FC/APC Rack Mount PLC Splitter
--- Product Description ---

Product Name:	optical fiber Rack Mount PLC Splitter
Place of Origin:	Zhejiang, China
Use:	CATV/FTTH
Length	1M, 2M, 3M or as your request
Cable Sheath	PVC
Cable Diameter	0.9/2.0/ 3.0 mm
Warranty	10-30 years

Product Description
PLC splitter is the planer wavelength integrated optic device which based on the quartz substrate, with small size, wide-field operation wavelength and high reliability and high splitter ratio features. Our company can manufacture the 1*N and 2*N all series products, and can be customized according to customer requirements in different situation.
Specification

Parameter/Type	Nx2(N=1or2)	Nx4(N=1or2)	Nx8(N=1or2)	Nx16(N=1or2)	Nx32(N=1or2)	Nx64(N=1or2)
Fiber	9/125 um SMF-28e or customer appoint
Operating Wavelength(nm)	1260~1650(nm)
Insertion Loss	≤3.9dB	≤7.1dB	≤10.3dB	≤13.3dB	≤16.3dB	≤19.8dB
Loss Uniformity(dB)	≤0.6dB	≤0.6dB	≤0.8dB	≤1.2dB	≤1.5dB	≤2.0dB
Polariation Dependent Loss	≤0.15dB	≤0.15dB	≤0.2dB	≤0.2dB	≤0.2dB	≤0.3dB
Return Loss	UPC≥50dB APC≥60dB
Directivity	≥55dB
Working Temperature(ºC)	-40°C to +85°C
