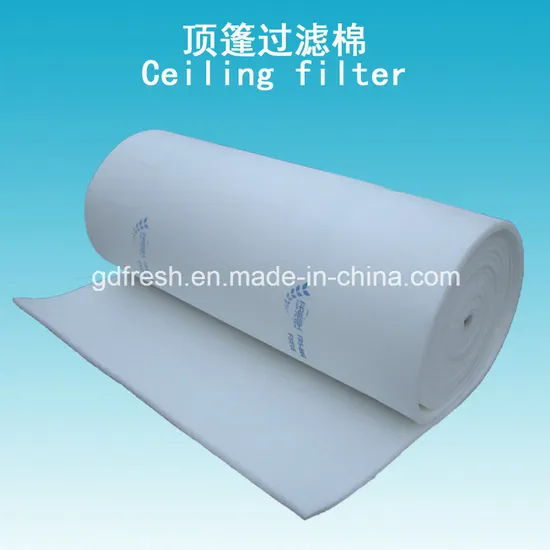

Synthetic Fiber 600g Ceiling Filter for Spray Booth

Product Description

F5/EU5 600G Ceiling Filter Material

Specification:

Type	Dimensions			Rated air velocity (m/s)	Initial Pressure Drop (Pa)	Rated Air Flow (m2/h)
	Length (m)	Width (m)	Thickness (mm)
FRS-600G	14	1.6	22	0.3	45	1080
FRS-600G	21	2	22	0.3	45	1080
Remark: Other specifications can be customized

Advantage:
·Low initial resistance
·Large dust holding capacity
·Flexible
·Outlet side with net or cloth

Application:
Mainly use for air intake system and painting workshops which are strict with spraying technology.
* Filtering micro particles in spray booth air inflow system.
* Dust removing in Painting equipment, painting system and painting workshop.
* Two-step filtering in high-quality painting system and air inflow system of baking equipment.
* Medium filter media for making air filter. * Using in piece, in roll, or with frame.
Technical Parameters:
Type: Supply pads or rolls size
Media: Synthetic fiber with gradual density, full imregnated with adhesive treatment
EN779 class: F5
Average arrestance:96%(ASHRAE52.1-1992)
Average efficiency: 45%-55 %(ASHRAE52.1-1992)
EUROVENT4/5 class: EU5
DIN53438 Non-flammability Standard: F1
Final resistance: (suggested) 400Pa
Temperature resistance: 100ºC
Instant temperature: ≤120ºC

Product Detail:
