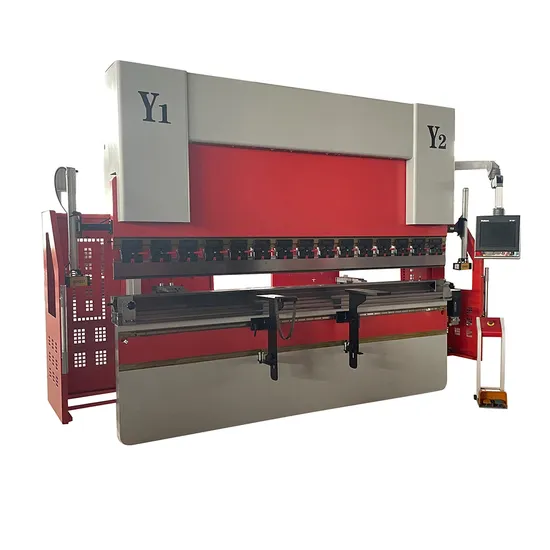

High Quality 3200*8mm Hydraulic Bender Machine / 4 Axis CNC Press Brake

Product Description

Hydraulic press brake machine
2.Press brake machine introduce
The machine body is in Overall welded and overall processed structure en ANSYS finite element analysis software is applied to main parts of the machine body for analysis which has ensured the reliability of machine tool and the precision of entire machine.
Closed lop control mode composed of electric hydraulic servo valve imported from Germany
and imported grating ruler is adopted for the main oil cylinders on both Sides to break through
the stroke control pattern of traditional bending machines of mechanical stopper type typical of
high feed back precision for position of gliding block accurate and stable operation good synchronization performance and high repeated positioning precision of gliding block.
Imported parts are used for all the functional parts in the rear stopper to ensure the stopping
precision of rear stopper and the mechanism of rear stopper with multiple stopper shafts for more complete functions is employed up to customer requirements.
Integrated control system imported from Germany is adopted for the whole hydraulic system to simplify the installation of pipelines and 10 ensures stable operation as well as simple and nice
appearance of the machine tool.
C shaped plates are fitted on both sides of the machine body and the high- precision grating ruler is. Mounted on the C shaped plates thus to avid the Influence over bending precision arising from distortion of machine body during bending process.
The lower workbench is fitted with automatic compensation mechanism for hydraulic deflection to achieve an effective dead zone free compensation with high bending precision and long stability guaranteed.
The numeric control system refers to the numeris-control system special for electric hydraulic servo bending machines of ltalian ESA Netherland DELEM or Swiss CYBELEC Companies able to achieve the functions of graphic programming for bending angle compensation for angle amendment automatic calculation and adjustment of bending pressure automatic calculation of compensation for workbench distortion extending length of work pieces bending pressure for sole pressing open distance and automatic with drawal of rear stopper etc.
3.Main pictures
4. Details of Machine
5. Technical parameter

Type	63T/2500	80T/3200	100T/3200	160T/3200	200T/3200	250T/3200	320T/3200
Nominal force(KN)	630	800	1000	1600	2000	2500	3200
Bending length(MM)	2500	3200	3200	3200	3200	3200	3200
Slider Travel(MM)	150	150	200	200	200	200	200
Throat Depth(MM)	350	350	400	400	400	400	400
Power(KW)	5.5	7.5	7.5	11	15	15	18.5
Back gauge travel(MM)	500	500	500	500	500	500	500
Back gauge speed(MM/S)	100	100	100	100	100	100	100
Dimension(MM)	3100x1450x2050	3500x1550x2100	3500x1580x2400	3500x1650x2500	3500x1680x2550	2500x1700x2600	3500x1800x2730

6.Optional Control system1.6"liquid crystal display screen with multi-nation language
display and metal shell
2.About 500 programs are stored and 30 sets of patrix and nowel may be stored in the die house
3.One page table-type programming, compensation for
bending pressure and work table deformation and automatic
calculation of bottom bending force
4Angle correction function, material parameter independent
setting, and memory to power off
1.10"color liquid crystal display screen with stored capacity
32M, die information stored capacity 2M and data are back-
up
2.2D drawing programming and display, bending operation
definition of drawing type and anti-impact testing
3.Freely setting material parameters, freely drawing
programming die, angle correction data base
4.Compensation for bending pressure and work table
deformation and automatic calculation of bottom bending
force, large-arc bending and developed length
1 2D graphical touch screen programming mode
2 3D visualization in simulation and production
3.17"high resolution color TFT
4.Full Windows application suite
5 Delem Modusys compatibility (module scalability and
adaptively)
6 USB, peripheral interfacing
7 Open systerm architecture
8 Sensor bending 8ucorrection interface
1. 2D and 3D graphical touch screen programming mode
2.3D visualization in simulation and production
3.17" high resolution color TFT
4.Full Windows application suite
5.Delem Modusys compatibility (module scalability and
adaptively)
6.USB, peripheral interfacing
7.Open system architecture
8.Sensor bending &correction interface
