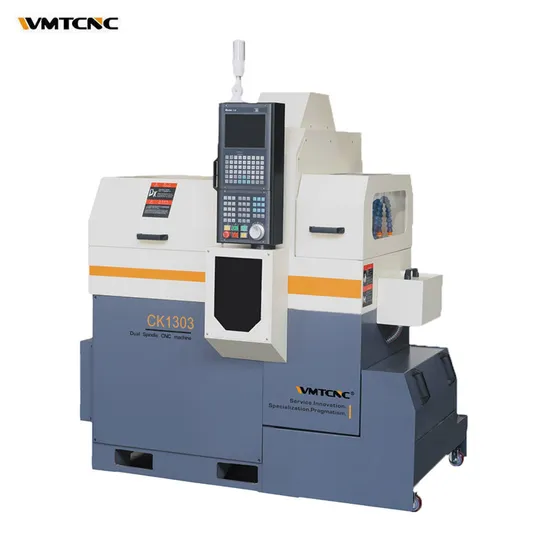

CNC swiss type turning lathe machine CK1303 swiss-type/sliding headstock cnc lathe

Product Description

Product Description
CNC swiss type turning lathe machine CK1303 swiss-type/sliding headstock cnc lathe main features:
1. CK1303 Spindle Movable Type CNC machine has features of reasonable structure, fast tool changing, high reliability. 2. The machine, comparedwith all others of its class, can obviously reduce times of feeding material, and improve efficiency when processing slender parts. 3. A one-timematerial feeding is enough for processing full length of parts that less than 150mm. 4. The material feeding part of the machine is equipped with automatic feeder, and the catching part can be installed with short and long partcatching device (can order according to your need) to realize the processing mode that one person minds several machines, so as to savelabour. 5. This kind of machine is the best for processing shaft parts that have complicated shape and require high precision and mass production in carand motor accessory, medicine, micro- axis, electronic component, pneumatic tool, clock industries etc.

Technical Parameter	CK1303
Power	Total Input Power	3.5kW
CNC System	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Y Axis Pulse Equivalent	0.001mm
	Z Axis Pulse Equivalent	0.001mm
	Max. Program	9999.999
	Cutting Speed	1-4000mm/min
	X Axis Rapid Feed Speed	24000mm/min
	Y Axis Rapid Feed Speed	24000mm/min
	Z Axis Rapid Feed Speed	24000mm/min
	Max Bar Diamater	Φ13mm
	Main Spindle Through-hole Diameter	Φ14mm
	Main Spindle Center Height from Ground	980mm
	Main Spindle Speed	0-5000r/min
	Main Spindle Motor Power	2kW
Travel	X Axis Travel	60mm (Diameter)
	Y Axis Travel	200mm
	Z Axis Travel	180mm
	X Axis Servo Motor Power	0.75kW
	Y Axis Servo Motor Power	0.75kW
	Z Axis Servo Motor Power	0.75kW
	Guide Rail Form	Linear Guide Rail
Gang Tooling System	Tools Arrangement	10pcs
	Turning & Milling Tools	6pcs
	Tool Size	10*10mm
	Front Drilling	4pcs
	Tool Size	ER11/Φ16
Cooling System	Motor Power for Cutting Oil	0.18kW
	Cooling Tank Capacity	55L
Lubrication System	Motor Power	25W
	Capacity	2L
Pneumatic System	Input compressed air pressure	0.4--0.6Mpa
Machine Size	Length*Width*Height	1530*1150*1790mm
	Machine Weight	8000kg
Optional configuration
Rotating Center Frame	Valid Traveling	100mm
Side Milling Live Tool	Chuck ER11+ER16	2pcs+1pc
	Power	0.4kW
	Speed of Rotation	5000r/min
