Rotary Pet Fruit Bottle Blow Moulding Machine

Product Description

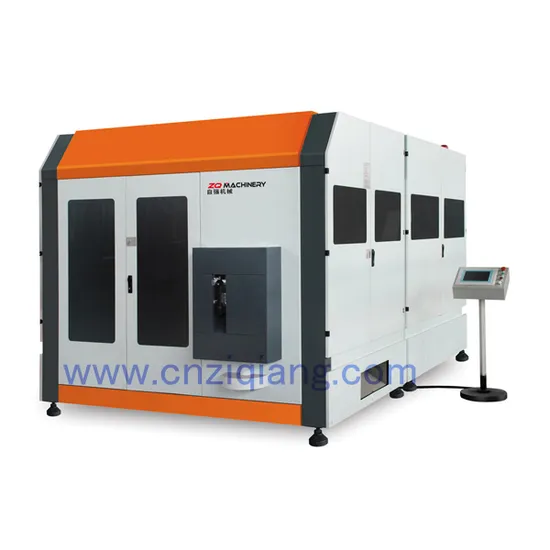

Rotary PET Fruit Bottle Blow Moulding Machine
ZQ-R Series is the most stable two-step fully automatic pet stretch blow molding machine. It has four and ten cavities, and the maximum capacity of the products is 2.0L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
High capability/price ratio PET processing machinery are praised as reliable products by our customers. The automatic blowing machine series have powerful productivity but with very reasonalbe price
Features
1. Rotary blowing method with high efficiency and output speed to reach 99.5% productivity
2. Electric control system with quick action and high accuracy
3. German imported air-valve, cylinder, SEW brand motor and trequency-transfer applied to keep stable operation and stretch
4. Quick mould exchanging system makes mould changing easily
5. Professionally designed robot sends preform and takes bottle out automatically and accurately
6. PHILIPS infrared ray lamps with automatic feedback compensation applied in heating system for bearing of heat and keeping heating steady.
Settings
A. PLC colour display: Siemens (Germany)
B. Pneumatic parts: FESTO(Germany)
C. Controller of preform transfer: Servo motor DELTA(Taiwan)
D. Other electric parts are all world-famous brand
Machine Features
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting
O. Low rejection rate: Less than 0.2 percent.
Factory picture
Equipment information.

TYPE	UNIT	ZQ-R4	ZQ-R6	ZQ-R8	ZQ-R10
Speed	pcs/h	4000-5500	6600-9000	8800-12000	9000-13000
Bottle Volume	L	<=2.0L	<=2.0L	<=2.0L	<=2.0L
Cavity		4	6	8	10
Product Material		PET	PET	PET	PET
Max. Diameter of Product	mm	120	120	120	120
Max. Bottle Neck Diameter	mm	38	38	38	38
Max. Product Height	mm	350	350	350	350
Power Supply		380V,50HZ	380V,50HZ	380V,50HZ	380V,50HZ
Main Motor Power	KW	6	4	4	6
Oven Installation Power	KW	80	110	140	170
Elevator Power	KW	2	2	2	2
Blowing Air Pressure	Mpa	3.0-4.0	3.0-4.0	3.0-4.0	3.0-4.0
Blowing Air Flux	m 3 /min	8-12	8-16	8-16	16-24
Working Air Pressure	Mpa	1	1	1	1
Working Air Flux	m 3 /min	2	3.5	3.5	3.5
Dimension of machine	m	Machinery 3.2*2.4*2.2	Machinery 2.1*2.9*3.1	Machinery 2.1*2.9*3.1	Machinery 3.2*2.5*3.3
		Oven 3.0*2.1*2.2	Oven 3.5*0.9*2.6	Oven 3.5*0.9*2.6	Oven 5.0*2.2*3.3
Weight of machine	Ton	6	7.5	10	16
Eligible Rate		>=99.8%	>=99.8%	>=99.8%	>=99.8%

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
