RB-CY9540 Accurate Accuracy Bubble Level, Bubble Vial
| Negotiable | 500 pieces (MOQ) |
Basic Info.
Model NO.
RB-CY9540
Kind
Cylindrical
Structure
All in One
Certification
RoHS
Material
Acrylic
Process Temperature
-30celsius Degree to 65 Celsius Degree
Model Number
Rb-Cy9540
Sensitivity
30′
Accruacy
0.5mm/M
Working Temperat
-30celsius Degree to 65 Celsius Degree
Color
Green,Blue,Yellow,Red,Orange,Clear,Purple
Outdoor Performance
UV Resistance
Customized Support
OEM/ODM
Transport Package
Carton
Specification
9.5MM in diameter, 40MM in length
Trademark
RABY
Origin
Zhejiang, China
HS Code
9031809090
Production Capacity
100000
Product Description

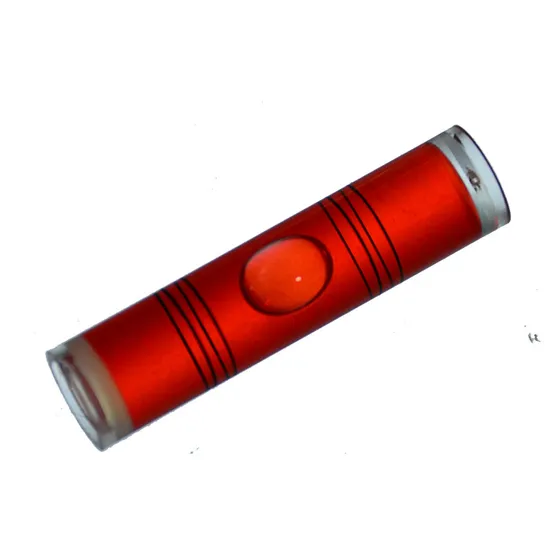

* Name, Plastic Bubble level,Spirit level vial
* Item No.,RB-CY9540
* Size,9.5mm in diameter, 40MM in length, tolerance +/-0.1MM
* This vial is made of Acrylic
* The precision is 30'+/-6', The excursion of air bubble will be no more than 2when circumvolving the central axis 360°
* The air bubble could be aggregated in 1 second after collision
* The vial will be like the original after being experimented under -30oC with 12h and 65oC with 12h
| Cylindrical Bubble Level Size Specification | |||||
| No. | Item No. | Dia. (MM) | L (MM) | Air Bubble Size(MM) | Sensitivity |
| 1 | RB-CY0512 | 5 | 12 | 2.5-3.0 | 30'+/-6' |
| 2 | RB-CY0513 | 5 | 13 | 2.5-3.0 | 45'+/-6' |
| 3 | RB-CY0614 | 6 | 14 | 3.5-3.8 | 30'+/-6' |
| 4 | RB-CY0615 | 6 | 15 | 3.5-3.8 | 45'+/-6' |
| 5 | RB-CY0620 | 6 | 20 | 3.5-3.8 | 45'+/-6' |
| 6 | RB-CY0629 | 6 | 29 | 3.8-4.2 | 45'+/-6' |
| 7 | RB-CY6518 | 6.5 | 18 | 4.5-5.0 | 20~25' |
| 8 | RB-CY0718A-30 | 7 | 18 | 6.0-6.5 | 30'+/-6' |
| 9 | RB-CY0718B-60 | 7 | 18 | 6.0-6.5 | 60'+/-6' |
| 10 | RB-CY77254 | 7.7 | 25.4 | 7.0-7.5 | 45'+/-6' |
| 11 | RB-CY7726 | 7.7 | 26 | 7.0-7.5 | 45'+/-6' |
| 12 | RB-CY0727 | 7 | 26.4 | 6.5-7.0 | 30'+/-6' |
| 13 | RB-CY0730 | 7 | 30 | 6.5-7.0 | 60'+/-6' |
| 14 | RB-CY0820 | 8 | 20 | 7.0-7.5 | 30'+/-6' |
| 15 | RB-CY0822A-30 | 8 | 22 | 7.5-8.0 | 30'+/-6' |
| 16 | RB-CY0822B-80 | 8 | 22 | 7.5-8.0 | 80'+/-10' |
| 17 | RB-CY0822C-120 | 8 | 22 | 7.5-8.0 | 120'+/-10' |
| 18 | RB-CY0823A-30 | 8 | 22 | 7.5-8.0 | 30'+/-6' |
| 19 | RB-CY0823B-60 | 8 | 22 | 7.5-8.0 | 60'+/-6' |
| 20 | RB-CY0825 | 8 | 25 | 7.5-8.0 | 30'+/-6' |
| 21 | RB-CY0835 | 8 | 34.5 | 8.0-8.5 | 45'+/-6' |
| 22 | RB-CY9523 | 9.5 | 23 | 8.8-9.2 | 30'+/-6' |
| 23 | RB-CY9525 | 9.5 | 25 | 8.8-9.2 | 30'+/-6' |
| 24 | RB-CY9531 | 9.5 | 31 | 8.8-9.2 | 30'+/-6' |
| 25 | RB-CY9532 | 9.5 | 32 | 8.8-9.2 | 30'+/-6' |
| 26 | RB-CY9534 | 9.5 | 34 | 8.8-9.2 | 30'+/-6' |
| 27 | RB-CY9535 | 9.5 | 34.8 | 8.8-9.2 | 30'+/-6' |
| 28 | RB-CY95395 | 9.5 | 39.5 | 8.8-9.2 | 45'+/-6' |
| 29 | RB-CY9540 | 9.5 | 40 | 8.8-9.2 | 30'+/-6' |
| 30 | RB-CY1023 | 10 | 23 | 9.5-10.0 | 15'+/-3' |
| 31 | RB-CY1025 | 10 | 25 | 9.5-10.0 | 30'+/-6' |
| 32 | RB-CY1025B | 10 | 25 | 9.5-10.0 | 30'+/-6' |
| 33 | RB-CY1030 | 10 | 30 | 10.0-10.5 | 30'+/-6' |
| 34 | RB-CY1035 | 10 | 35 | 10.0-10.5 | 30'+/-6' |
| 35 | RB-CY1135 | 11 | 35 | 10.5-11.0 | 30'+/-6' |
| 36 | RB-CY1240 | 13 | 45 | 10.5-11.0 | 30'+/-6' |
| 37 | RB-CY1340 | 13 | 45 | 11.0-11.5 | 30'+/-6' |
