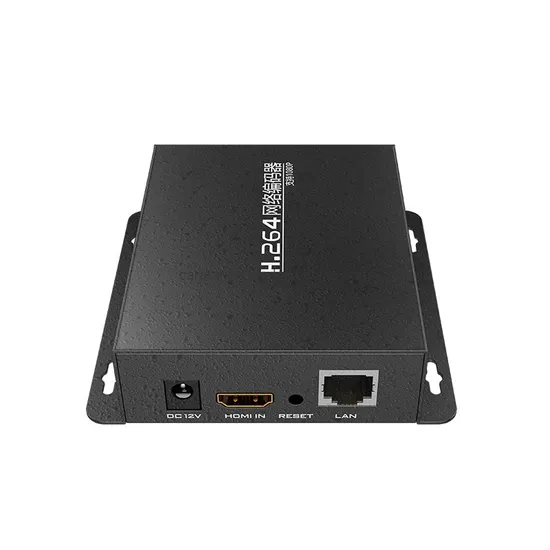

1080P HDMI Video Encoder for IPTV Live Stream Broadcast
| US$122.00-199.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
Encoder
Certification
CE, RoHS
Condition
New
Specification
customization
Trademark
caratar
Origin
China
Product Description
Mini HD 1080P HDMI Video Encoder H.264 IPTV Encoder for IPTV, Live Stream, Broadcast Support RTMP RTMPS SRT RTSP RTP UDP HTTP ONVIF FLV HLS TS Protocols and Live Platforms Product Features:The main and sub-group streams are more reliable
HDMI high-definition 1920x1080p
Support H.264 high efficient video coding, clearer image, lower occupied bandwidth
Pure hardware coding, more stable and reliable
Support subtitles, logos, etc.
Live broadcast platform, main and sub-group push stream
Compatible with various live broadcast platforms
Easy to operate, no settings required
Support multiple resolution custom settings
Metal shell, fast heat dissipation
Technical Parameters:
| Specifications | parameter | |
| Audio and video input | Video input | 1 port HDMI |
| | Audio input | 1 port HDMI built-in audio |
| Video coding | Coding type | H.264 |
| | Coded frame rate | 5-60 adjustable |
| | Key frame interval | 5-300 adjustable |
| | Bit rate (kbit) | 32-32000 adjustable |
| | Coding resolution | 1920x1080/ 1680x1056/ 1280x720/1024x576/ 850x480/ 720x576/ 720x540/ 720x480/ 720x404/ 704x576/ 640x480/ 640x360/ 608x448/ 544x480/ 480x480/ 480x384/ 480x360/ 480x332/ 480x272/ 480x270/ 400x320/ 400x224/ 352x480/ 352x352/ 352x228/ 320x256/ 320x240/ 320x180/ 240x180/ 176x144/ Same as input resolution |
| | Code stream control | CBR/VBR optional |
| | Stream | Support RTMP/ RTSP/ HTTP FLV/ HLS/ UDP multicast/ RTB multicast |
| Audio coding | Coded sampling rate | 44100/48000 optional |
| | Coding method | AAC+/ AAC++/MP3/ MP2/AC3 optional |
| | Coding bit rate | AAC:48000-320000adjustable / AAC+:2400-48000adjustable / AAC++:12000-320000 adjustable / MP3:64000-320000adjustable / MP2:64000-320000adjustable / AC3:40000-640000adjustable |
| | Digital volume | -50 ~ 50 adjustable |
| | RTSP stream uses G711A encoding | Disable/ Enable optional |
| OSD | Transparency | 0-128 adjustable |
| | Type | Text/ picture/ scrolling text |
| | Area | 4 areas available |
| | X coordinate | 0-1920 |
| | Y coordinate | 0-1080 |
| | LOGO | 4 logos can be uploaded for selection |
| | Font size | 8-72 |
| | Background color | Transparent/ white/ black |
| | Font color | RGB color is optional |
| General use | Network | Support Gigabit networks |
| | Configuration management | Configuration management via the WEB |
| | ONVIF | Support ONVIF search browsing videos |
| | Power | DC 12V, 1A |
| | Power consumption | 4W |
| | Operating temperature | -20ºC - 60ºC |
| | Operating humidity | <90%, no condensation |
| | Dimension | 10.4x10.4x2.7cm(includes wall hanging) |
Packing List
Network Encoderx1
Power adapter x1
HDMI cable x1
User manual x1
