Cost-Effective AAC Block Machine Price in Bangladesh

Product Description

Product Description
The introduction of AAC block Autoclaved Aerated Concrete (AAC) is a lightweight, precast, foam concrete building material suitable for producing concrete masonry units like blocks. AAC has excellent thermal insulation properties, sound absorption capabilities, and is highly fire-resistant. It's an eco-friendly material often used in construction due to its superior energy efficiency and durability.

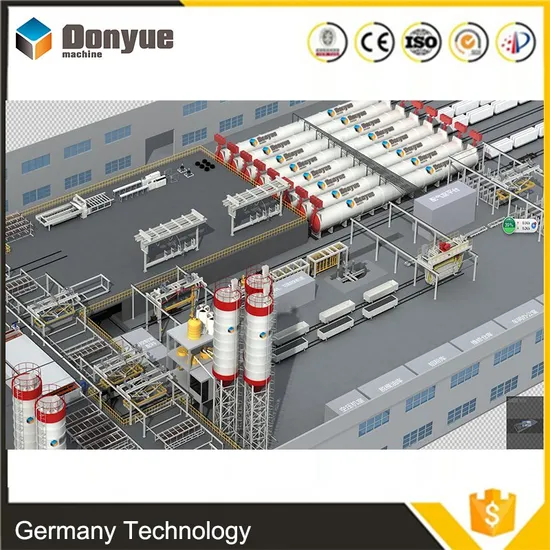

AAC production line process

1.AAC block raw material process and storage
To make a the rational design of the raw material storage areas, Dongyue improve the material processing method to circumvent the dust noise, solid waste disposal and other problems for workers to create a comfortable working environment
2.weighing and pouring
The material, binder, gypsum and aluminum are respectively called by the corresponding automatic metering metering, high-speed mixer and then stirred within, into gas gun sort after pouring into the mold box. The entire system PLC automated control to ensure accurate and efficient operation of the process.
3.curing and cutting
Smooth static stop control will prevents the embryo to initiate the expansion process of the internal structure of the damage, Dongyue provide six-sided cutting programs, efficient and smooth cutting and turning device to Waste Paper is the core equipment.
4.Aerated and finished products process

After autoclave, brick obtain the final strength and performance. And the new technology for the separate of the finished block can packaging system will not only improve the rate of qualified products, but also solve the problem of separate of the finished products .
Product Parameters
AAC brick and AAC panel production line capacity

Type	Mould/Cutting machine size	Annual output (m3)
4.2m	4.2x1.2x0.6m	50,000~150,000
4.8m	4.8x1.2x0.6m	150,000~200,000
6.0m	6.0x1.2x0.6m	200,000~300,000
6.0m	6.0x1.5x0.6m	250,000~350,000
6.5m	6.5x1.2x0.6m	250,000~350,000

AAC brick Specification parameter

Type	TU groove brick	Flat brick without groove
Length(mm)	600	600
Thickness(mm)	75,100,125,150,200,250,300	75,100,125,150,200,250,300
Height(mm)	240,300,400	240,300,400

Volume density level		B06	B05	B04
desiccated density(kg/m³)		≤625	≤525	≤425
Strength level		A5.0	A3.5	A2.0
Drying shrinkage date (mm/m)		0.5	0.4	0.4
freezing resistance	loss %	≤5.0	≤4.0	≤3.0
	Strength after freezing(Mpa)	≥4.0	≥2.8	≥0.6
Dry coefficient of thermal conductivity [W/(m·k)]		≤0.16	≤0.14	≤0.12

AAC panel Specification parameter

Type	Product size
	Length(mm)	Thickness(mm)	Height(mm)
partition board	≤3000	600	75
	≤4000		100
	≤5000		125
	≤6000		150
	≤6000		175

AAC block display

AAC is one of the major achievements of the 20th century in the field of wall construction. It is a revolutionary material offering an unique combination of high durability and strength, low weight, unprecedented buildability and superior ecological green features.

• AAC is a high-quality, non-load-bearing and extremely well insulating building material produced as standard or mega blocks or panels.


• AAC is a long proven material. It has successfully been used in world since early last century and is now among the mostly used wall building materials in Europe with rapidly growing market shares in Asia, the Middle East and recently America.
Our Advantages
Why choose our aac plant solution system ?

★ we are specialized in aac plant since 1994, at the same time absorbed technical team from Germany AAC-Concept Gmbh. The team of 5 members all have serviced the Germany YTong more than 20 years.

★With our own AAC block, AAC panel and sand-lime three in one plant; we are professional in manufacturing equipment and AAC plant management.

★There are nearly 400 AAC production lines world wide running continuously which use dongyue aac plant solution system.

★ Technical team timely support:we provide customers with planning, design drawing, guiding the construction, installation, commissioning, technical teaching one-stop service.

Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2004,sell to Africa(60.00%),Domestic Market(20.00%),South America(10.00%),Southeast
Asia(5.00%),Eastern Asia(5.00%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Our after-sales system is complete, so you do not have to worry about buying.
3.what can you buy from us?
Brick Making Machinery,Aerated Concrete Block Equipment,Metal Colored Stone Tile
4. why should you buy from us not from other suppliers?
Our company set up more than 30 years, has twenty years of export experience, is 10 years gold supplier, 2000 workers, the
quality of products to meet EU standards, and our company also provides perfect after-sales service. Has An excellent R & D team
in the top one in China. Our service is of the highest quality. Our after-sales are perfect.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C
Language Spoken:English,Chinese,Portuguese,Russian,Korean
