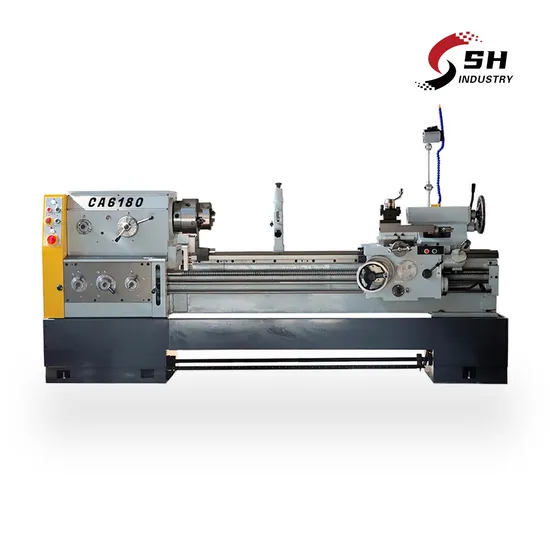

Ca6180 High Quality Horizontal Manual Turning Metal Heavy Lathe

Product Description

Product Description
Ca6180 High Quality Horizontal Manual Turning Metal Heavy Lathe
We are the most professional in making gap bed lathe Product Parameters
This series of lathes is suitable for turning internal and external cylindrical surface, conical surface and other rotating surface, turning a variety of metric, imperial, modular and diameter pitch threads, and can be carried out
Drilling and pulling oil tanks and other work.
The bed is wider than the general lathe, with high stiffness, guideway surface by high-frequency quenching, durable wear.
The machine operation is convenient and centralized, and the slide plate is equipped with a fast moving mechanism. Using a single handle visualization operation, good amenity.
The structural stiffness and transmission stiffness of the machine tool are higher than that of the general lathe, and the power utilization rate is high, which is suitable for strong cutting.
Features :
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment

SPECIFICATIONS	Specifications		CA6180 CA6180B CA6180C	CA6280 CA6280B CA6280C
	Max. Swing over bed		800mm
	Max. Swing over carriage		540mm
	Max. swing in gap		--	1020mm
	Effective gap length		--	210mm
	Max. length of work piece		750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
	Width of bed		400mm
	Section of turning tool		25x25mm
	Spindle	Spindle speeds	10-1400rpm/16-1400rpm (24steps)
		Hole through spindle	52mm. (80mm). [105mm]
		Spindle taper	NO.6(MT6)(φ90 1:20)[φ113 1:20]
	Feed	Number of feeds	64 kinds(for each)
		Range of metric threads(kinds)	(1-192mm)44kinds
		Range of inch threads(kinds)	(2-24tpi)21kinds
		Range of module threads(kinds)	(0.25-48)Moduie39kinds
		Range of pitch threads(kinds)	1-96DP(37kinds)
	Tailstock	Max. tail stock spindle travel	150mm
		Tail stock spindle diameter	75mm
		Taper of tail stock spindle center hole	NO.5(MT5)
	Main motor		7.5KW(10HP)
	Packing dimensions (L*W*Hmm)	Overall dimensions for750mm	2550x1140x1750
		Overall dimensions for1000mm	2700x1140x1750
		Overall dimensions for1500mm	3200x1140x1750
		Overall dimensions for2000mm	3700x1140x1750
		Overall dimensions for2200mm	4030x1140x1750
		Overall dimensions for3000mm	4850x1140x1750
		Overall dimensions for4000mm	5800x1140x1750
	Weight (kg)	Length	G.W N.W.
		Weight for 750mm	2520 2400
		Weight for 1000mm	2720 2560
		Weight for 1500mm	2980 2800
		Weight for 2000mm	3260 3087
		Weight for 2200mm	3490 3287
		Weight for 3000mm	4200 3887
		Weight for 4000mm	4850 4500

Realistic photos
Detailed Photos

Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
