Plastic PVC Pet LLDPE Pulverizer Machine for Powder Grinding with PVC Window Door Profile Cable Trunking
| US$6,900.00-18,900.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SMF/ MP
Material Processed
Plastic Flakes
Plastic Type
PVC
Screw
None
Automation
Automation
Computerized
Computerized
Certification
QS, GMP, ISO9001:2008, CE
Name
PE PA PVC ABS Recycling Grinding Machine Pulverize
Inverter
ABB/Delta
Motor
Siemens Beide/Weg
Blades Materials
SKD11 Can Customized
Contactor
Siemens Schneider
Color
Customed
Weight
0.3-3t
Voltage
380V 50Hz 3phase(Customized)
Bearing
SKF/ NSK
Cooling Way
Water Cooling
Mesh Size
10-80mesh
Diameter of Rotor
500mm
Machine Testing Video
Provided
Power
30, 45, 55, 75kw
Capacity
100-800kg/H
Transport Package
Standard Shipping Package
Specification
2mx3mx3.6m
Trademark
CAMEL MACHINERY
Origin
China(Mainland)
HS Code
84778000
Production Capacity
3000 PCS/Year
Product Description
PE PVC PET recycling grinding machine waste plastic pulverizerProduct Description
Main features of PE LDPE LLDPE pulverizer:
1.Low power consumption, high capacity
2.Simple structure and easy installation.
3.Host with the wind ,water circulation cooling system.
4.This Plastic pulverizer can deal with PE, LLDPE, LDPE, ABS, EVA etc.
Technical data:
| Model | MP-400 | MP-500 | MP-600 | MP-800 | MP-1000 |
| Diameter of milling chamber(mm) | 350 | 500 | 600 | 800 | 1000 |
| Motor power (kw) | 22-30 | 37-45 | 55 | 75 | 90/110 |
| Cooling | Water cooling + natural cooling | ||||
| Air Blower power(kw) | 3 | 4 | 5.5 | 7.5 | 11 |
| Fineness of powder | 10 to 100 mesh (adjustable) | ||||
| Output of pulverizer(kg/h) | 100-120 | 150-200 | 250-300 | 400 | 500-800 |
| Dimension (mm) | 1800×1600 ×3800 | 1900×1700 ×3900 | 1900×1500 ×3000 | 2300×1900 ×4100 | 2500×2300 ×4100 |
| Weight (kg) | 1300 | 1600 | 1500 | 3200 | 3600 |

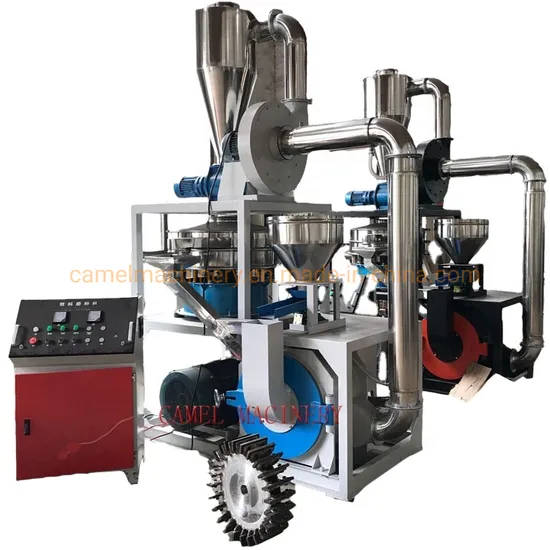

PVC pulverizer(rotor type)
Main features
1. The capacity of this model is higher than other kind of miller.
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker and save money for clients.
4.The cover of main machine can be opened for maintain.
5.The cooling system include the water and wind cooling for the machine body.
Technical Data:
| Model | SMF-400 | SMF-500 | SMF-600 | SMF-800 | SMF-1000 |
| Main Motor power (kw) | 30 | 37 | 45/55 | 55/75 | 90/110 |
| Capacity (kg/h) | 50-120 | 150-200 | 280-380 | 400-600 | 600-800 |
| Material of conveying pipe | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Weight of PVC pulverizer (kg) | 1000 | 1200 | 1800 | 2600 | 3200 |
| Cooling | Wind cooling +water cooling | ||||
Detailed Photos
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock, it is according to what kind of machine you need
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,70% balance before shipment or Negotiable
If you have another question, please feel free to contact us as below
Contact with us
Company name: Zhangjiagang Camel Machinery Co., Ltd
Address: Yongli Economic Development Zone, LeYu Town, Zhangjiagang City, Jiangsu Province, China
