Large 2100*4100mm Wood Door Cabinet Furniture Atc CNC Router with 15PCS Bits Changing/Italy Spindle

Product Description

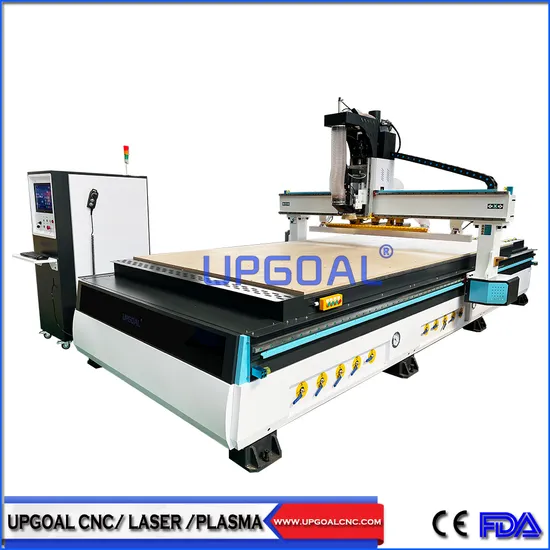

Large 2100*4100mm Wood Door Cabinet Funiture ATC CNC Router with 15PCS Bits Changing/Italy Spindle
Features
1.Whole machine is welded by strong square steel structure, with tempering aging treatment, no distortion, long time using.
2. Linear type auto tool changer system, total 15pcs(or more) bits in the tool magazine, can change the needed bits intelligently, saving bits changing time, improving efficiency.
3.Adopted with famous Italy HITECO 9.5KW ATC air cooling spindle, high precision, low noise, high RPM, long life time , and stable moving.
4.Famouns Delta brand 11KW inverter, for spindle muti-speed adjusting.
5.The latest SYNTEC Taiwan 60CB high performance industrial control system, intelligent controlling, has the protection function for beyond the working table, avoiding the mechanical collision due to the larger designed layout. Intelligent control the speed, can control the processing speed severally, truly improve the processing efficiency and lengthen the tools life time, increase the rate of finished products. Can do multi layer 3D processing, fast and smooth do three-dimensional processing, engraving and cutting.
6. Powerful Yaskawa Japan 850W servo motor and driver for XYZ-axis,for XYZ-axis, suitable all kinds of heavy solid wood engraving and cutting, high precision and fast speed.
7. Japan Shimpo reducer for servo motor, used for replace traditional rack and belt,to make machine more powerful and stable.
8. Linear square guide rail, Hiwin, Taiwan, dia 30mm for XYZ-axis, double raw four columns, good weight capacity, stable moving and ensuring the precision. Germany WHM Heilon helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.
9.Vacuum adsorption system: vacuum adsorption table with 10 zones& aluminum alloy T slot & pilot pin & feeding wheels , adopted bakelite table, high density, no deformation and high adsorption, can for different size materials adsorption, saving time compared the traditional mechanical plate fixing, the vacuum pump is 2 sets 7.5kw air cooling type to solve water cooling vacuum pump changing water issue in the frigid weather.With feeding wheels on the back of machine, convenient for heavy materials loading.

10. Double bags dust collector 7.5kw helps to suck the dust, milling dust, saw dust during processing, keeping the working table cleaning and ensuring the machine long time using.
11. Indpendent SYNTEC control cabinet with famous brand electronic parts.
12. With oil mist coolign device when processing alumimum/metal work pirece, impproving engraving cutting precision.

13. Has material pusher
14.Precisioin auto tool calibration, more convenient for each time Z-axis 0 point setting.
15.Auto lubrication system more convenient for maintenance.
16.Advanced file processing function, can timely correct faults, and good compatibility forType3/Artcam/Mastercam/Caxa such file. Advanced three dimensional curve forcast algorithm, stable broken line, ensuring the curve moving speed & precision.
17. Memory function after power failure and break point, can auto back to zero point and correct the faults, ensuring the precision for long time working and saving materials.
Technical Parameters

Effective working area	2100(X)mm*4100(Y)mm*300(Z)mm
Materials	Heavy duty steel pipe welded structure for whole machine
Working table	Vacuum adsorption table with aluminum alloy T slot & pilot pin & feeding wheels
Moving type	Gantry moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan, dia 30mm)
Transmission	WHM helion helical rack &pinion for X Y -axis, TBI lead ball screw for Z-axis
Driving mode	Yaskawa Japan 850W servo motor driver for XYZ-axis
Spindle motor	9.0KW China HQD ATC air cooling spindle(ISO30)
Spindle speed	0-24000rpm
Tools changing method& changing ability	Linear type auto tool changer, 15 pcs
Inverter	Delta,11KW
Voltage	AC 380V/AC220V, 50/60Hz, three phases
Maximum traveling speed	60000-800000mm/min
Maximum engraving speed	25000-40000mm/min
Machine accuracy	0.01mm
Control system	SYNTEC 60CB control system( 3 axis, 4 axis)
Hand wheel	SYNTEC HPG( hand pulse generator)
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Oil mist cooling system	With
Dedusting device	Dust collector, 7.5kw
Vacuum pump	Air cooling, 7.5KW, 2 sets
Lubrication system	Automatic
Tool calibration	Auto
Certificate	CE

Reference working videos:
https://youtu.be/k3rwoEks8FE

Application
Woodworking industry: three-dimensional waved plate, cabinet door, craft door, overlaid wood composite door, screen, solid wood door, craft casement window, etc, such furniture product milling and engraving, also for shoe-cleaning machine, game machine cabinet and panel, mahjong table, computer table and auxiliary processing of panel furniture,mainly used for cabinet door, solid wood furniture, also can for MDF cutting & processing.
For more information, just feel free to contact us!
