Low Temperature Powder Ultrafine Grinder Superfine Pulverizer Micronizer Grinding Machine

Product Description

YR-CWF Ultrafine Pulverizer Main applications:
This equipment is mainly used for ultrafine pulverization of materials in the pharmaceutical, chemical, and food industries. It is suitable for experimental trial production and processing of various raw materials such as cereals, traditional Chinese medicinal materials (such as panax notoginseng, ginseng, tea leaves, licorice, hawthorn, pearl, etc.), food, drugs, ceramics, and minerals.
Main features: 1. It consists of a crushing host, cyclone separator, pulse dust removal, material collection box, and electrical control box, achieving integration of crushing, powder and gas separation, and finished product collection. The fineness of the finished product can reach 2000 mesh.
2. There is a finished product particle size adjustment turntable and an indicator needle, making it convenient and quick to adjust the coarseness and fineness. The powder after the first crushing can undergo secondary crushing, achieving a fineness of nanometers.
3. It has functions such as wind power selection, no screen and no mesh, uniform particle size, and overload indication. It can work continuously, with the feeding motor automatically supplying materials. During operation, the powder and airflow flow smoothly, with high crushing efficiency. The crushing chamber dissipates heat quickly, resulting in low residual material. It can effectively improve the utilization rate of materials.
4. The entire machine is made of 304 stainless steel, with a compact structure, simple operation, and convenient assembly, disassembly, and cleaning. It has low noise, and the crushing process does not produce dust, making the working environment clean and environmentally friendly, in line with GMP standard requirements. It can be customized with a low-temperature cooling unit according to user requirements, and comes with a simple dust removal device or optional pulse dust removal device.
Main specifications:

Model	YR-CWF
Production capacity	5-30kg/h
Fineness	500-2000mesh
Feed size	≤10mm
Main speed	5000r/min.
Total power	10.25kw
Voltage	380V
Main machine weight	228kg
Main machine size	875*720*1240mm

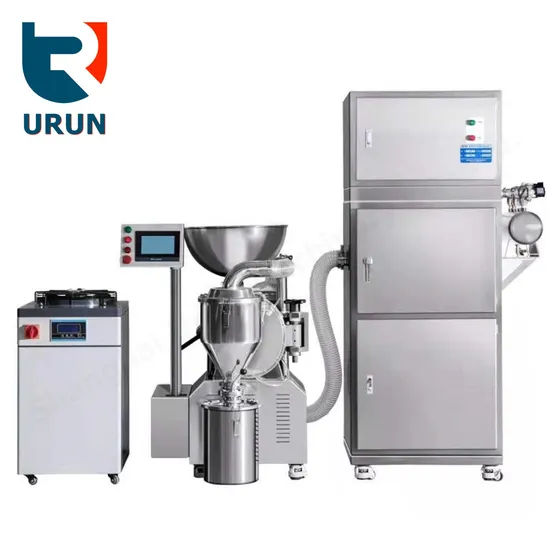

Machine pictures
Samples
Factory show
FAQ:
Q1: What is the price of your machine?
A1: Our machine prices vary depending on different specifications and quantities. Please provide your specific requirements, and we will provide you with a detailed quotation.
Q2: What price terms you can offer?
A2: We can offer EXW, FOB, FCA, CFR, CIF and other price terms based on your request.
Q3: What payment terms you can take?
A3: Our main payment term is T/T, and L/C is acceptable as well.
Q4: Do you accept customized products?
A4: Yes, we can customize products according to customer's specific requirements. Please provide detailed specifications and requirements, and we will provide corresponding quotations and delivery time.
Q5: How long is your delivery time?
A5: Delivery time depends on product type and order quantity. Generally speaking, we will complete the delivery within the specified time after signing the contract and notify you of the specific delivery date in a timely manner.
Q6: How do you ensure your product quality?
A6: We have strict quality control during the production process. Each machine undergoes a trial run before shipment, and the trial run video is provided to the customer for confirmation. We also welcome customers to visit our factory for equipment acceptance after the goods are ready.
Q7: How do you pack your products?
A7: We choose suitable packaging materials and methods according to the characteristics and transportation methods of the products to ensure that the products are safe and undamaged during transportation. Usually, we use export wooden boxes and cardboard boxes for packaging.
Q8: What shipping methods do you use?
A8: The shipping method depends on factors such as the volume, weight, and destination of the goods. We can provide multiple shipping methods such as sea, air, and land transportation for you to choose from.
Q9: How long is your guarantee period?
A9: Our guarantee period is one year after the machine arrive at the customer's factory.
Q10: How about your after-sale service?
A10: We will provide English user manuals, detailed installation and usage videos. Our technical support is available 24/7, and if needed, we can also provide on-site service abroad.
