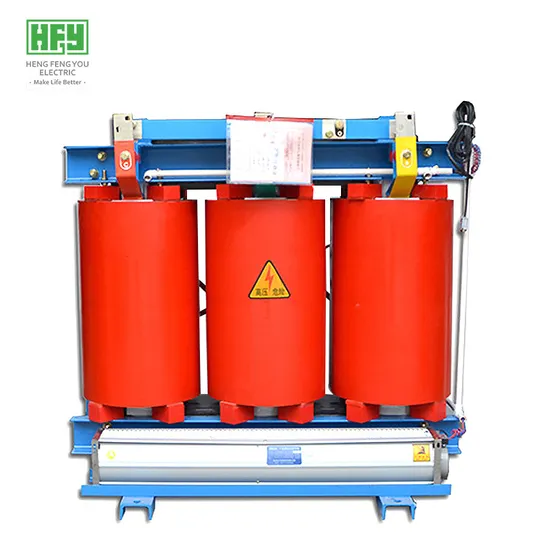

Low Loss 500 kVA Dry Transformer. 11kv Dry-Type Transformer. 500kVA Distribution Transformer with ISO9001

Product Description

Low Loss 500 kVA Dry Transformer. 11kv Dry-Type Transformer. 500kVA Distribution Transformer with ISO9001
product introduction
...
• Dry-type transformer applies epoxy resin cast process instead of immersing iron core and windings in insulation oil.
• It consists of iron core made of silicon steel plates and epoxy resin cast coils.
• Insulation cylinder and other insulators between high and low windings are placed to increase electrical insulation.
• Its cushion blocks can support and restrain the coils, and its fasteners have anti-loose function. Without using insulation oil, dry-type transformer is fire-proof and explosion-proof, easy to maintain and has high reliability, low partial discharge and long operation life.
• After vacuum treatment and positive pressure, there is no bubble between turns and layers, and it can greatly reduce the amount of partial discharge.
• Also, it owns the advanges of small volume, low weight, low noise, high operating efficiency, save room and easy installation.-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product features
...
1. Low energy consumption: The adoption of isotropic soft magnetic material generates low magnetization power, high electrical resistivity and low eddy current consumption. The no-load loss and current of the core made of amorphous alloy are very low, only 1 / 3 of that of silicon steel sheet.
2. Strong corrosion resistance: the amorphous alloy core is fully wrapped by resin and high temperature resistant silica glen which effectively prevent corrosion and falling off amorphous alloy fragments, and provide better protection for the core and coil.
3. Low noise. Improvement of the structure of iron core and coil and adoption of special noise -reduction materials greatly reducing the operation noise.
4. Strong short-circuit resistance. This product adopts three-phase five-column structure, and the iron core is protected by frame structure. Featured by low temperature-rise and strong heat dissipation, this product can work by 150% rated load under air cooling condition. Perfect temperature control protection system is applied to provide reliable guarantee for safe operation of transformerProduct details
----------------------------------------------------------------------------------------------------------------------------------------------------------
company profile
...
HENGFENGYOU TRANSFORMERbelongs to HENGFENGYOU ELECTRIC Group, It is a power transformer products as the main business, set product research and development, design, production and sales of enterprises, designated suppliers for the world's top 500 enterprises. We are committed top roviding the best distribution transformer solutions for global customers.
Keyfigures
▪Founded:1990
▪2018 revenue: 635 million RMB
▪350 employees 30 electrical engineers
▪4 production locations in China (Qingdao, Liaocheng, Xuzhou, Shijiazhuang)
▪6% of revenues are invested in research and development
Power distribution solutions that drive the global energy transition
With energy demand expanding in both developed and emerging countries, the challenge for HENGFENGYOU Group is to connect energy with people. The group's teams work as closely as possible with projects and decision makers and design and propose technical and process solutions based on global user needs.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
>>>>>>>>>> Our factory MAKE LIFE BETTER
The HENGFENGYOU team achieves synergy with in the team to develop and produce specific solutions tha tmeet all customer needs.
Our equipment is designed and researched by R&D services according to each country's electrical standards and helps manage your distribution network for optimal efficiency.
HENGFENGYOU's state-of-the-art production workshop and production equipmentwill produce high quality products according to your specifications.
HENGFENGYOU has a certified quality control laboratory where electrical products are tested out of factory to ensure the reliability and optimal life of our products.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
>>>>>>>>>> Business Cooperation MAKE LIFE BETTER
Grow business with Hengfengyou
Our goal is to become the world's leading manufacturer of electrical equipment. The business, experience and technology accumulated over the years have benefited customers in more than 50 countries around the world. Once our customers establish a cooperative relationship, they are long-term trusted customers, because Hengfengyou always insists on providing you with our best electrical products and services.>>>>>>>>>> Logistics delivery MAKE LIFE BETTER
certification >>>>>>>>>>>>
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ
Q1: Is OEM/ODM available?
A1: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.
Q2: What's your MOQ?
A2: One Set.
Q3: How is the delivery time?
A3: It depends your order quantity and it normally takes about 15-20 days.
Q4: How do you control the quality?
A4: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.Every product will be fully assembled and carefully tested before packing and shipping.
Q5: How long is the warranty?
A5: Within one year from the sale date, if there are any accessory problems, you just provide the photos of damaged accessory, then we will provide free accessory. According to the number of products, we will provide easily damaged accessories for free. We also can provide technical support if you need.
