PD30B FINCM Vertical Cnc Drilling Machine for Plate Steel

Product Description

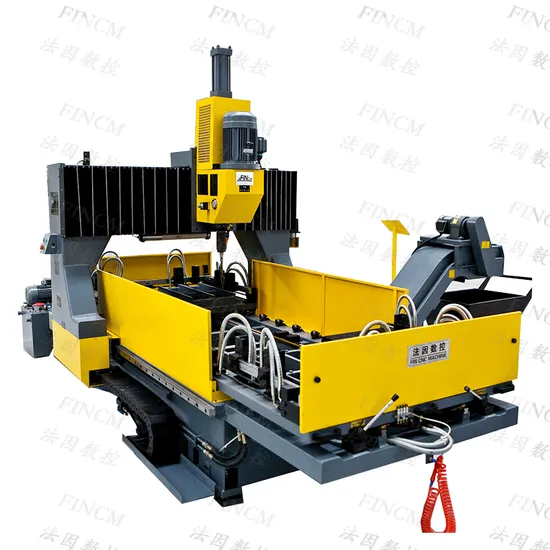

PD30B FINCM Gantry Movable Vertical Steel Plates Carbide Alloy CNC Hydraulic Drilling Machine 3000mm*1600mm*80mm
Product Description
Product Parameters
Main Technical Specifications:

Item	Name	Value
Plate Size	Thickness	Maximum 80mm
	Width x Length	1600mm×3000mm (for One piece of plate)
		1500mm×1600mm ( for Two pieces of plate)
		800mm×1500mm (for Four pieces of plate)
Spindle	Quick change chuck	Morse taper No. 3#,No.4#
	Drilling bit Diameter	Φ12-Φ50mm
	Speed adjustment type	Frequency Inverter stepless speed change
	RPM	120-560r/min
	Travel Length	180mm
	Feeding	Hydraulic stepless speed adjustement
Material Clamping	Clamping thickness	Min. 15 ~ Max. 80mm
	Clamping cylinder No.	12 pieces
	Clamping force	7.5KN
	Clamping open way	Foot switch
Cooling	Method	Compulsory recycling
Hydraulic Power pack	Pressure	6MPa(60kgf/cm2)
	Oil tank	100L
Pneumatic system	Compressed air pressure	0.6MPa(6kgf/cm2)
Motor	Spindle Motor	5.5kW
	Hydraulic Pump Motor	2.2kW
	Scrap Removal Motor	0.4kW
	Cooling Pump Motor	0.25kW
	X Axis Servo Motor	1.5kW
	Y Axis Servo Motor	1.0kW
Machine Size	L×W×H	About 5560×4272×2855mm
Weight	Main machine	About 8000 Kg
	Scrap Removal Device	About 400 Kg
CNC Axis	X,Y(Point position control) Z(Spindle, Hydraulic feeding)
Travel	X Axis	3000mm
	Y Axis	1600mm
Maximum Positioning speed	8000mm/min

List of the Key Outsourced Components

No.	Name	Brand	Country
1	Linear guide rail	CSK/HIWIN	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos/YUKEN	Italy/Japan
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China
