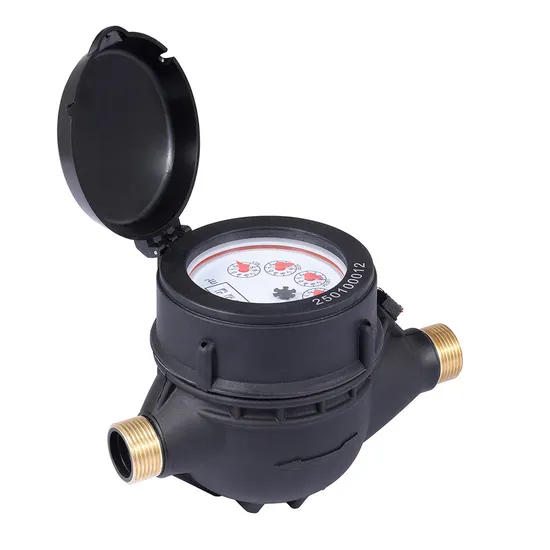

Multi Jet Composite Water Meter with Brass Threads
| US$5.00-6.00 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
LXSG-15S3-50S3
Install
Horizontal
Medium Temperature
Cold Water
Level Measurement
Class B / Class C / R160
Counter Instructions
Digital
Nominal Diameter
15-50mm
Application
Civil
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Traditional
Warrenty
6 Years
Transport Package
Export Carton
Specification
Plastic body, Brass Thread
Trademark
OEM
Origin
Ningbo, China
HS Code
9028201000
Production Capacity
100, 000/Month
Product Description
For this model, we have Class B, Class C, R80, R100, R125, R160 for options.
Multi-jet, Dry dial
Body material: Nylon Plastic, Brass Thread
Sizes: DN15 to 50mm( 1/2" - 2"), available for cold water (40°C)
Accuracy: DN15(½"), Class B / Class C / R160
DN20-50mm,(¾" - 2"), Class B
Easy for interchange & maintenance
MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-1996) Standard
| Size | Class | Qs Overload flow | Qp Nominal flow | Qt Transitional flow | Qmin Min flow | Min reading | Max reading | |
| DN(mm) | Inch | m³/h | L/h | m³ | ||||
| 15 | 1/2" | A | 3 | 1.5 | 150 | 60 | 0.0001 | 99999 |
| B | 120 | 30 | ||||||
| C | 22.5 | 15 | ||||||
| 20 | 3/4" | A | 5 | 2.5 | 250 | 100 | 0.0001 | 99999 |
| B | 200 | 50 | ||||||
| C | 37.5 | 25 | ||||||
| 25 | 1" | A | 7 | 3.5 | 350 | 140 | 0.0001 | 99999 |
| B | 280 | 70 | ||||||
| 32 | 11/4" | A | 12 | 6 | 600 | 240 | 0.0001 | 99999 |
| B | 480 | 120 | ||||||
| 40 | 11/2" | A | 20 | 10 | 1000 | 400 | 0.001 | 99999 |
| B | 800 | 200 | ||||||
| 50 | 2" | A | 30 | 15 | 1500 | 600 | 0.001 | 99999 |
| B | 1200 | 300 | ||||||
MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-2007) Standard
| DN SIZE | Mm Inch | 15 1/2" | 20 3/4" | 25 1" | 32 11/4" | 40 11/2" | 50 2" |
| Q4(m³/h) | 3.125 | 5 | 7.875 | 12.5 | 20 | 31.25 | |
| Q3(m³/h) | 2.5 | 4 | 6.3 | 10 | 16 | 25 | |
| R80 | Q2(L/h) | 50 | 80 | 126 | 200 | 320 | 500 |
| Q1(L/h) | 31.25 | 50 | 78.75 | 125 | 200 | 312.5 | |
| R100 | Q2(L/h) | 40 | 64 | 100.8 | 160 | 256 | 400 |
| Q1(L/h) | 25 | 40 | 63 | 100 | 160 | 250 | |
| R125 | Q2(L/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 320 |
| Q1(L/h) | 20 | 32 | 50.4 | 80 | 128 | 200 | |
| R160 | Q2(L/h) | 25 | 40 | 63 | 100 | 160 | 250 |
| Q1(L/h) | 15.62 | 25 | 39.37 | 62.5 | 100 | 156.2 | |
| Min reading(m³) | 0.00005 | 0.00005 | 0.00005 | 0.00005 | 0.001 | 0.001 | |
| Max reading(m³) | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | |
| Max pressure(MAP) | 16 | 16 | 16 | 16 | 16 | 16 | |
| Max loss(ΔP) | 63 | 63 | 63 | 63 | 63 | 63 | |
| Max temperature | T50 | T50 | T50 | T50 | T50 | T50 | |
| Pulse output option | Vmax=24V, Imax=100mA, Pmax=2W | ||||||
INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
| Meter size Dia DN (mm) | L Length | B Width | H Height | Connecting Thread D | Weight (Meter only)Kg |
| mm | |||||
| 15 | 165 | 99 | 104 | G 3/4B | 0.53 |
| 20 | 190 | 99 | 125 | G 1B | 0.60 |
| 25 | 260 | 106 | 132 | G1 1/4B | 0.78 |
| 32 | 230 | 104 | 120 | G1 1/2B | 0.82 |
| 40 | 245 | 128 | 150 | G 2'B | 1.20 |
| 50 | 300 | 130 | 150 | G2 1/2 B | 1.46 |
WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Working pressure:≤1.6Mpa
