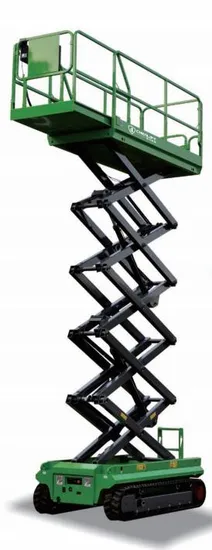

10m Platform Height Self Propelled Scissor Lift
| US$6,900.00-8,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MC1000
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Certification
CE, ISO 9001
Loading Capacity
320kg
Max. Working Height
12m
Max Platform Height
10m
Platform Size
2.27*1.12m
Overall Width
1.39m
Weight
2840kg
Transport Package
PVC Film Wrapped in Pallet
Specification
2.28*1.39*1.995m
Trademark
CHEN LIFT
Origin
China
HS Code
8428909090
Production Capacity
2000 Units Per Year
Product Description
Crawler Self Propelled Scissor Lift Track Type Scissor Lift PlatformSelf-Propelled Crawler Scissor Lift is light and exquisite, convenient and flexible. It can pass through the general foyer, can enter and exit the elevator at will, save energy and electricity, and work without hurting the ground. It can be used for wall-mounted work and exploration work.
Safe and reliable operation performance, the base pothole protection device gives you a hundred times peace of mind.
Specification:
| Model | MC450 | MC600 | MC800 | MC1000 |
| Load Capacity | 200kg | 450kg | 450kg | 320kg |
| Extension Capacity | 100kg | 113kg | 113kg | 113kg |
| Occupants | 1 | 2 | 2 | 2 |
| Maximum Working Height | 6.5m | 8m | 10m | 12m |
| Maximum Platform Height | 4.5m | 6m | 8m | 9.75m |
| Overall Length ( Including ladder) | 1410mm | 2470mm | 2470mm | 2470mm |
| Overall Length ( Excluding ladder) | 1340mm | 2280mm | 2280mm | 2280mm |
| Overall Width | 782mm | 1390mm | 1390mm | 1390mm |
| Overall Height (Guardrail unfolded) | 2070mm | 2280mm | 2400mm | 2530mm |
| Overall Height (Guardrail folded) | 1683mm | 1745mm | 1865mm | 1995mm |
| Platform Size | 1340*760mm | 2270*1120mm | 2270*1120mm | 2270*1120mm |
| Platform Extension Size | 500mm | 900mm | 900mm | 900mm |
| Minimum Turning Radius | 0m | 0m | 0m | 0m |
| Lifting Motor | 24V/12Kw | 48V/4.5Kw | 48V/4.5Kw | 48V/4.5Kw |
| Traveling Motor | 2*24V/12Kw | 2*48V/4Kw | 2*48V/4Kw | 2*48V/4Kw |
| Machine Running Speed | 1.7Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h |
| Rising/Descending Speed | 24/20sec | 38/30sec | 45/36sec | 70/62sec |
| Batteries | 2*12v/120Ah | 8*6V/200Ah | 8*6V/200Ah | 8*6V/200Ah |
| Charger | 24V/15A | 48V/25A | 48V/25A | 48V/25A |
| Gradeability | 30% | 30% | 30% | 30% |
| Max.Working Slope | 1.5°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Overall Weight | 790kg | 2400kg | 2550kg | 2840kg |
Company Introduction
Chenlift (Suzhou) Machinery Co Ltd. is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
