Waste Pet Bottle Flakes Extruder Plastic Pelletizing Granulating Machine

Product Description

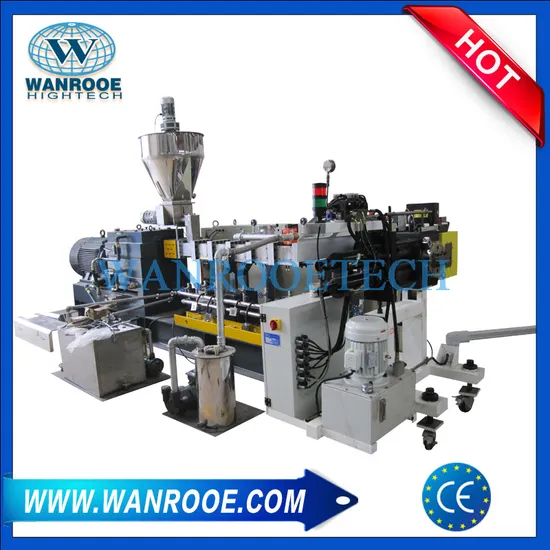

Waste PET Bottle Flakes Extruder Plastic Pelletizing Granulating Machine
Application :
This PET plastic pelletizing machine is design specializes for recycling the recycled washed plastic PET plastic flakes/scraps, such as Cola plastic bottle flakes/scraps, purified water bottle flakes/scraps, PET sheet flakes/scraps, PET drinking bottle flakes/scraps etc.
Description:
This plastic granulator machine is used to make PET plastic flakes into pellet or granule.Twin screw extruder recycling & pelletizing system are applied to the waste materials, which needs high processing performance of melting, volatilization, filtering etc., mainly works for the job of PET scraps recycling and re-pelletizing.
After processing techniques such as feeding, heating, melt, cooling, drying, cutting etc., the final products are PET plastic pellets/granules that can be to produce new PET plastic products.
Process flow:
Screw feeder ( OPTIONAL)→ Force feeder→ Parallel twin screw extruder →Hydraulic filer exchanger→ Mould head →water cooling tank →Plastic standard cutter→ Finished product packing.
Detailed description of each item:
1.Screw Feeder : convey Plastic scraps into the main machine.
2.Force feeder: feed the material to the extruder with a designed speed, the speed can be adjusted.
3.Parallel twin screw extruder: plasticizing material and exhausting gas.
4.High-speed Net exchanging system and Die-head: filter material impurity, to make production more stable.
5.Water tank: cooling the PET noodles.
6. Plastic standard cutter: cut the PET noodles into granuels.
Equipment Lists:
1.Screw Feeder(optional).
2.Force Feeder.
2.Parallel twin screw extruder.
3.Die head and screen changing device.
4.Water tank.
5.Air-knife.
6.Electrical control box.
Features:
1.Allow free assembling of the screw component, based on raw material type.
2.Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3.High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4.Main screw has vacuum exhaustion.
Main parameters:

Model	Screw Dia(mm)	L/D	Capacity(kg/h)	Main Motor(KW)
SJPT65	63	32-48	250-300	75
SJPT75	72	32-48	300-400	90
SJPT92	92	62-40	500-600	250
