5kN Plastic Film/Paper/Rubber/Textile/Aluminum Foil Peeling/Tensile/Compression/Universal Strength Tester

Product Description

Product Parameters

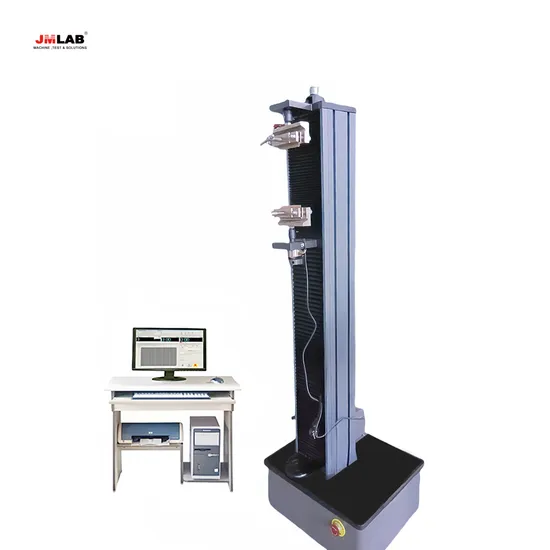

The electronic universal testing machine WDW-5E is widely used in the inspection and analysis of materials in construction materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, household appliances and other industries.
The electronic universal testing machine WDW-5E could perform tests and data processing according to GB, ISO, JIS, ASTM, DIN and various standards provided by users, and has good performance. expansion.

No.	Item	Parameters
1	Max test force	5KN (0.1/0.2/0.3/0.5/1/ 2/3KN optional)
2	Test accuracy	0.5 grade
3	Test range	0.4%-100% F·S
4	Displacement resolution	0.01mm
5	Test speed	0.01-500mm/min
6	Tensile space	600mm (could be customized)
7	Test force accuracy	Better than ±0.5% of indicated value
8	Deformation accuracy	Better than ±0.5%
9	Compression space	600mm (could be customized)
10	Host dimension	520*400*1340mm
11	Host weight	150Kg

Detailed Photos
Company Profile
Certifications
Packaging & Shipping
FAQ 1. Are you Manufacturer?Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of professional Manufacturers like Universal Testing machines, Fatigue Testing Machines,Torsion And Bending Testing Machines,Friction And Wear Testing Machines,Package Testers, Texture Analyzer,Plastic Rubber Testers, Adhesive testers and other testing Equipment.. .Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an E-mail or call ,we will try our best to find the problem through our conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What's the delivery term?
1-3 working days for the standard machine if we have stock in the warehouse. If there is no stock, normally, the delivery time is 3-15 working days after deposit receipt ( this is only for our standard machines). If you are in urgent need, we will making a special arrangement for you.

3. Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4.How can I install and use the machine?
Once you have ordered the testing machines from us, we will send the operation manual and video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.
5. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
