Ha-9020n Series Double Pump Air Jet Looms Weaving Machine Width 190cm

Product Description

Product Parameters

NO.	Item	Technical Parameters
1	The Effective reed width(cm)	Normal reed width: 0---65cm(≤230cm); 0---85cm(>230cm)
2	Starting mode	Motorized spindle; Super start motor drive(Optional)
3	Motor capacity	2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW
4	Running operation	One-hand operation button; Two-hand operation button(Optional)
5	Pump	Single pump; Double pump(Optional)
6	Nozzle	Normal Nozzle, "U" shaped Nozzle
7	Crank shedding	4-piece type; 6-piece type; 8-piece type(Optional)
8	Positive cam shedding	6,8,10 piece type,12,14 piece type(Optional)

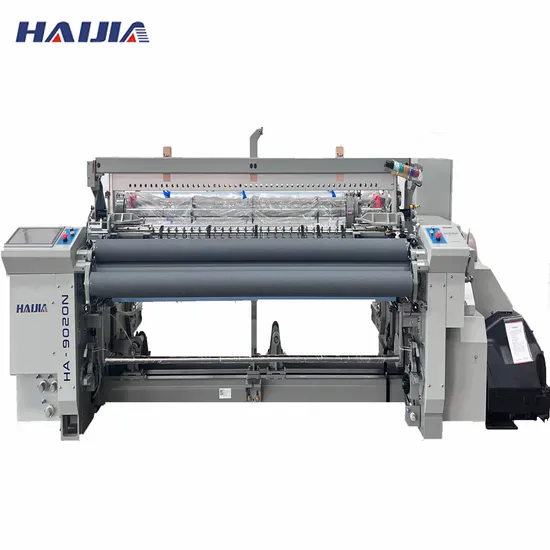

Haijia Textile Weaving Machine HA-9020 Series Air Jet Loom
HA-9020 Series Air Jet weaving has been extensively strengthened in the fuselage;
Adapt to the weaving of most fabrics; such as ir jet cotton fabric, viscose, and textiles for home applications , etc.
It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 1000RPM.
Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)
Product Description
Company Profile
HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development,With the unremitting effort, our products have been exported to more than 30 countries around the world . At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. we has two smart manufacturing plants,one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts . We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees ,cover 150,000 sqm and an annual production capacity of over 20,000 units.
Packaging & Shipping
Our Advantages
