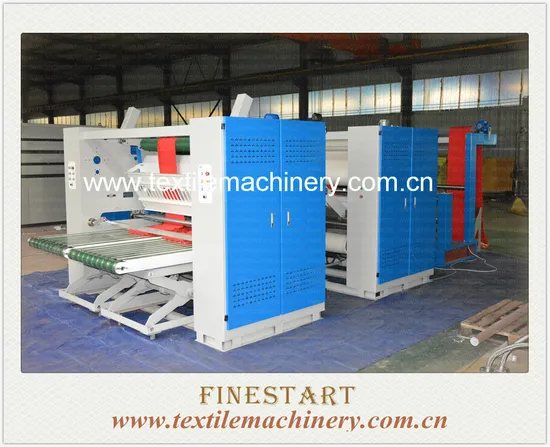

Tubular Compactor Knit Sanforizing Machine for Textile Finishing
| US$30,000.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FSLD
Material
Non-woven Fabric
Voltage
380V
Load Capacity
>2000kg
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Type
Fsys450bq
Width
1400mm
Speed
3~30m/Min
Power
10.77/36.02/10.77kw
Steam
100/50/50(Kg/H)
Dn Oil/Steam
Dn32/Dn20/Dn32/Dn20
Heating Method
Steam/Electric Oil
Transport Package
Export Standard
Specification
6500X2740X2250mm
Trademark
FINESTART
Origin
Jinan, China
Production Capacity
100units/Year
Product Description
Introduction
This machine is used for preshrinking and ironed tubular fabric, and equipped with magnetic separating shuttle, hydraulic lifting platform, 18mm NOMEX carpet. The fabric could keep in a stable size during this process after drying machine. Less than 5% shrinkage and excellent softness could be reached.
Based on different sources, we could offer the following four models:
Steam/Electricity+Conducting Oil (Internal loop)/ Electricity+Conducting Oil(External Circulation) / Conducting Oil Supply
The temperature of steam drying model could reach 130°C, other models' temperature are more than 180°C.
Our machine blanket is 18mm thickness, containing NOMEX material, which could resist high temperature and not pollute the fabric.
*The width of fabric: 1500 mm Max.
**Standard diameter of Cylinder is 450mm.
Design Drawing
Basic Info
| Model | FSYS450 |
| Name | Tubular Fabric Sanforizer |
| Application | Textile-finishing(shrinkage rate:2-5%) |
| Suitable Fabric | Tubular knitted Fabric Pure cotton,wool,blended fabric(cotton content>65%) |
Techical Dates
| Main Matching Fabric | tubular fabric of above 65% cotton content |
| heat source | natural gas / circulating conduct oil / steam |
| pre-shrinking type | 20mm Nomex compacting |
| supporting plate type | maglev separeted shuttle |
| fabric outfeed type | auto precisely plaiter |
| Max working width of supporting plate | 1450mm |
| Max working width of felt | 1500mm |
| working speed | 5-30m/min |
| drum temperature control type | up & down separatly control |
| drum drive type | up & down separatly drive |
| Max temperature of drum | electricity,conduct oil <190ºC,steam<140ºC |
| breadth adjustment type | manual and electromotion |
| capacity of machine | 10kw |
| standard machine power supply | 380V/3P/50HZ |
| control power supply | 220V/24V |
| steam specification of steam box | 3-6Kg/cm² saturated steam |
| steam comsuption of steam box | 50~100 kg/h |
| compressed air | 0.35-0.6MPa |
| dimension | L*W*H=6500mm*2740*2250mm |
| total weight | 4.55T |
Production Line
Other Products
Payment Terms:
Payment Conditions: 30% down payment by T/T and the balance payment should be TT or in irrevocable L/C at sight.
Delivery time: 30-60 days from the date of receiving down payment. All payment should be received before delivery in China.
Any questions and requirments,contact us now!
