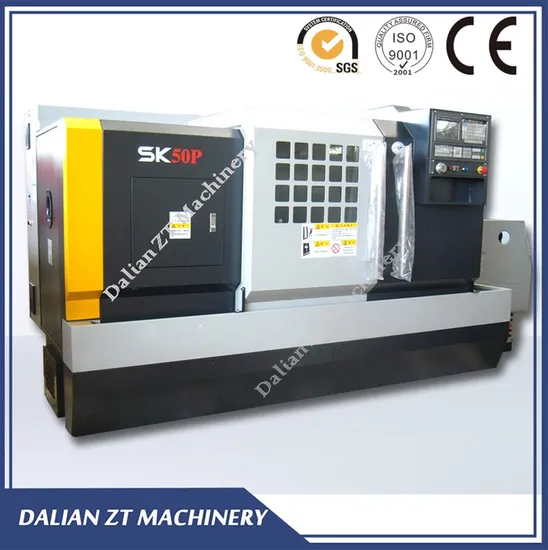

Reliable Heavy Cutting Economic CNC Flat Bed Lathe SK40P

Product Description

SK40P SK50P Specifications

Items	SK40P	SK50P
Max. Swing over bed	400mm	500mm
Max. Swing over slide	200mm	280mm
Max. Turning length	400/350mm (6-station tool post)	500/350mm (6-station tool post)
Distance between centers	710/960/1460/1960mm(for 4-station tool post)
Max. Turning length	570/820/1320/1820mm(for 4-station tool post)
Spindle nose	ISO702/I A2-8 or ISO702/II D8
Spindle thru-hole	77mm
Spindle speed	3 ranges; 21-1620 rpm
Main motor power	7.5kW
Tailstock quill diameter	75mm
Tailstock quill travel	150mm
Quill taper	Morse No.5
A/Z-axis rapid traverse	6/12 rpm
Nos of tool station	4 (optional 6)
Tool section	25x25mm
X-axis travel	275mm
Z-axis travel	650/900/1400/1900mm

Standard equipment: Equipment with FANUC-Oi-TF(5) control system(x. z servo motor), The main spindle is driven by servo motor, Spindle speed change by hand lever (on the head stock) and programing, 4-station electric tool post, manual 3-jaw chuck, lubrication unit, coolant supply system, all standard accessories.
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
