Cost of PE PP Film Recycling Washing Machine Line

Product Description

Cost of PE PP Film Recycling Washing Machine Line Product Description
This Cost of PE PP Film Recycling Line is designed and manufactured by MOOGE TECH, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing. The line can be displayed "L" or "U" shape according to clients' workshop. We can also customize the washing line components according to client's material and product requirement.
Product Parameters

Model	Capacity	Installed Power	Hot Washing	Water Supply	Area Required (L*W*H)
ME-300	300kg/hr	200 KW	Optional	6-8 m3/hr	40*4*5 m
ME-500	500kg/hr	350 KW	Optional	8-10 m3/hr	40*4*5 m
ME-1000	1000kg/hr	600 KW	Optional	15-20 m3/hr	55*6*6 m

Features At A Glance

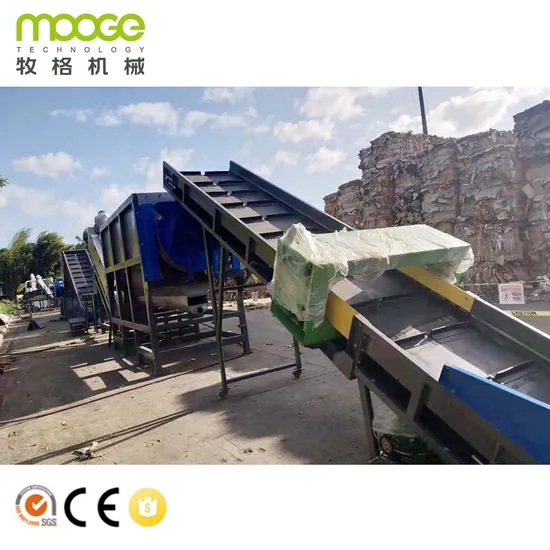

Conveyor Belt with Metal Detector

Function :Feeding material and detection the metal
Semi-Automatic model For ferrous and non-ferrous Its installed on the sorting conveyor Once there is metal passing it, it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm
Precision fornon-Ferrous>3.2mm
Plastic Crusher Machine
Function :crushing the material into small flakes
With water inlet do wet crushing
This series blades are more wider, it will save
the blades cost
Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out
Friction washing loader
Function: Friction washing with water to remove the dirty and loading up it
Up and down both mounted with bearing design
With water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing
Floating washing tank
Function: Floating Washing separate the sand, soil and other dirty.
Roller Speed adjust by inverter
The roller is specially made can have more washing for lakes but less water take out
Bottom with conical design easy and better drain out the dirty and maintenance
With platform one set on the side of the tank
High speed dewater machine
Function: take out dirty and remover water
With the roller bearing and fixed outside of rotor for long use life Bearing is "NSK" Brand Japan
With water to washing the screen
Clean the screen with a rotating brush
Bottom with dirty water drain out
With water to cooling the bearing house
The chamber is easy to opening to maintenance
With water spray system to clean the mesh
Hot air dryer system
Function:drying the material
heating by electricity box Drying pipe: 1 set
Heating power box: 1 set
Heating power: 48KW
Drying pipe diameter: 219mm
Drying pipe length: 15m
Blower power: 7.5KW
Customer Onsite
MT-300 PE film recycling line in Angola
MT-500 plastic PE film washing machine in Myanmar
MT-1000 HDPE film recycling washing line in Brazil
