Hydraulic 10 Tons Tyre Excavator Log Grab Price
| US$42,000.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
100Z
Application
Sugarcane Loader
Power Source
Diesel
Harvest method
Picking
Drive Type
Hydraulic
Transmission
Hydraulic
Portable Harvester Type
Hydraulic
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture, Forestry
Boom Length
3680mm~4000mm
Arm Length
1860mm~2650mm
Transport Package
Nude Packing
Specification
6450*2330*3050mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000sets/Year
Product Description
QUANZHOU JINGLI ENGINEERING MACHINERY CO. LTD.jg-excavator.en.made-in-china.comProduct Description

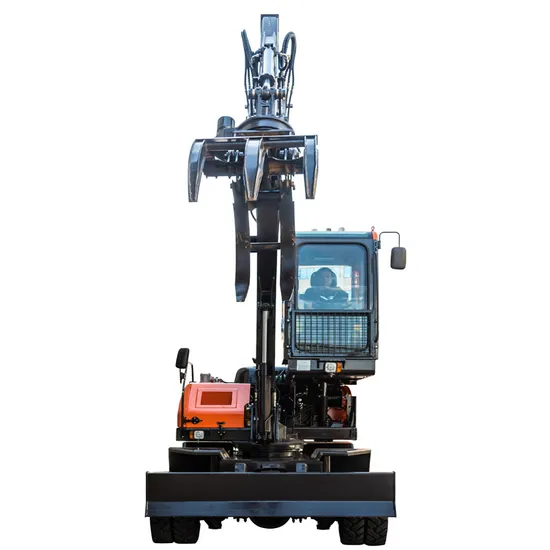

Sugarcane land grab excavator with grapple attachment
JG100Z grapple wheel excavator is installed with 65KW turbocharged engine and 360°rotary grab,
realizing a grab capacity of 0.5-0.6 tons.
This kind of wheeled excavator is suitable for the collecting and place of woods and sugarcanes.
It not only achieves good sales at home, but also finds huge markets in Southeast Asia, Saudi
Arabia and more.
Specification
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3670mm | ||||||||
| Arm length | 1860mm-2650mm | |||||||||
| Max radius of capture | 7000-7800mm | |||||||||
| Grab the biggest opening width | 1250mm | |||||||||
| Grab the minimum opening width | 80mm | |||||||||
| Maximum radius weight capacity | 800-900kg | |||||||||
| Grapple rotation angel | 360° | |||||||||
| Maximum Dumoing height | 4650-5100mm | |||||||||
| Back-End radius of gyration | 198mm | |||||||||
| Max lifting height of cab | 800mm | |||||||||
| Max extended distance of arm | 800mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 6450*2230*3050mm | ||||||||
| Wheel base | 2430mm | |||||||||
| Track(Front/rear) | 1850mm/1750mm | |||||||||
| Ground clearance of counterweight | 1060mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 8600kg | |||||||||
| Engine model | YN38GBZ/4102(Turbocharged) | |||||||||
| Rated Power | 65KW | |||||||||
| Rated Speed | 2400r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 71ml/r | |||||||||
| Max Hauling force | 58.5KN | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Volume Of Bucket | 0.35m3 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
Workshop Show
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have
rigorous production procedures, and each production process is carried out under strict quality inspection.Only after
passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean
and safe working environment.
