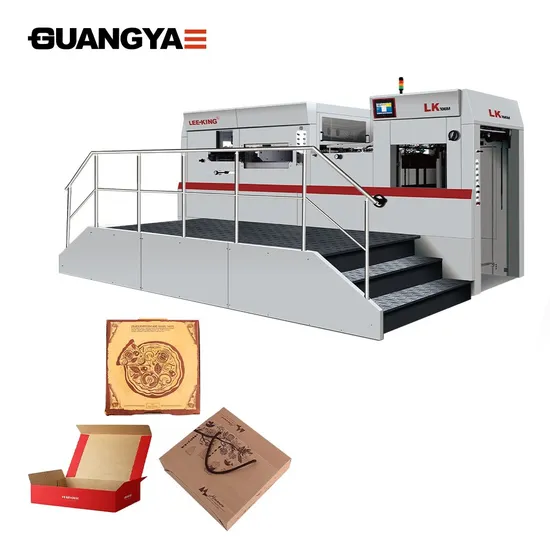

Automatic Die Cutting Machine for Paper, PVC, Cardboard, etc (1060 X 770 mm)

Product Description

TECHNICAL PARAMETER

Model	LK106M
Max. sheet size(mm)	1060×770
Min. sheet size(mm)	400×370
Max. die cutting size(mm)	1050×750
Max. feeding pile height (mm)	1350
Max. delivering pile height (mm)	1200
Max. working pressure(T)	300
Power rating(KW)	17.6
Paper range	90 -2000(g/M2) (cardboard) 0.1-2mm(cardboard) ≤4mm(corrugated)
Max. working speed(s/h)	7500
Main motor power(KW)	11
Machine weight(kg)	16000
Gripper Margin(mm)	8-17
Air requirements	0.6Mpa, >0.37m³/min
Overall machine dimensions(mm)	6050×4200×2260

MAIN FEATURES
Non-stop Feeder
• Non-stop High-Speed Feeder
• Strong sheet suction feeder
• Feeder anti-collision protection
• Pre-stacking paper function, non-stop paper feeding function
Feed Table
• Driven by chain movement,with stable and reliable operation
• Imported belts
• Electrical front lays
• Double sheet detection function
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
Host Station
• Electrically pressure adjustment function
• The complete set of worm gear and worm from Taiwan to improve the service life of key transmission parts of the machine
• Automatic pressure keeping and pressure reduction function (only foil stamping)
• Imported intermittent mechanism to ensure running accuracy
Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning


Delivery
• Electrical auxiliary delivery function
• Mechanical adjustable braking brush
• Pneumatic non-stop sampling function
• Tape inseter (optioinal)
Control System
Operating System
• 10.5-inch industrial control color touch screen
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• Imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance

*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
